Hydrocyclone Classifier

Request a Quote

View All: http://hz-mineralprocessing.com/2-2-4-hydrocyclone.html

Application
Hydrocyclone classifiers are widely used in grinding and classification, concentration, dehydration, desliming, superfine classification and other technology involving ferrous metal and non-ferrous minerals.

Applicable materials
Gold ore, copper ore, iron ore, lead-zinc ore, kaolin, bentonite, feldspar, calcium carbonate, aluminum oxide, ceramics, coal and so on.

Parameters

Models	Diameter (mm)	Feed pressure (MPa)	Handlingcapacity (t/h)	Separation granularity(um)
FX840	840	0.04-0.15	500-900	75-350
FX710	710	0.04-0.15	400-550	74-250
FX660	660	0.04-0.15	260-450	74-220
FX610	610	0.04-0.15	200-300	74-200
FX500	500	0.04-0.2	140-240	74-200
FX400	400	0.06-0.2	100-170	74-150
FX350	350	0.06-0.2	70-160	50-150
FX300	300	0.06-0.2	45-90	50-150
FX250	250	0.06-0.3	40-80	40-100
FX200	200	0.06-0.3	25-40	40-100
FX150	150	0.08-0.3	14-35	20-74
FX125	125	0.1-0.3	8-20	25-50
FX100	100	0.1-0.3	8-20	20-50
FX75	75	0.1-0.4	5-10	10-40
FX50	50	0.1-0.4	2-5	5-40
FX25	25	0.1-0.6	0.3-1	5-20
FX10	10	0.1-0.6	0.05-0.1	1-5

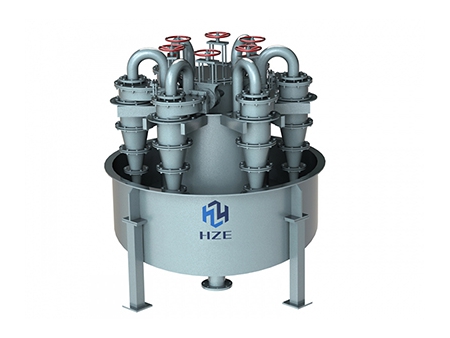

Hydrocyclone classifier

An involute mode is used at the material inlet for material infeed. It increases the centrifugal force of the materials, improves the classification effect and lessens the wearing of the feed box.
By using an involute mode, the hydrocyclone caused by a sudden spread when the materials enter the cyclone will be reduced. The slurry will run smoothly in the cyclone, thus improving the separation ability of the hydrocyclone and reducing the impact wear on the ore tank caused by materials.
High classification effect.
The hydrocyclone classifier is equipped with a wear resistant rubber lining.
