EMS.03 Single Flute Upcut Spiral Bit

EMS.03 Single Flute Upcut Spiral Bit
EMS.03 Single Flute Upcut Spiral Bit
EMS.03 Single Flute Upcut Spiral Bit
Request a Quote
  • Designed to machine acrylic, PVC, resin, plastic, aluminum, copper, bronze, brass, wood, chipboard, GRP/CRP composite board, melamine board, etc.
  • Left hand spiral, right hand cut
  • Prevents fraying and chipout of top edge of work piece

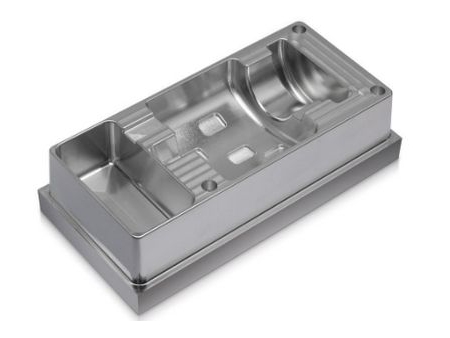

Application
Product Specifications
Coating DLC/Diamond Work Material Aluminum / Copper Alloy / Acrylic / Wood / Resin
Helix Angle 30°/35°/37° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Single Flute Upcut Spiral Bit, Left hand Spiral for Right Hand Cut
Unit: mm
Mill Dia
D1
Shank Dia
D2
Flute length
L1
O.A.L
L2
AITin Coated Click to Order Non-Coated Click to Order
0.5 4 2.0 50 EMS.03.005D EMS.03.005
0.8 4 3.0 50 EMS.03.008D EMS.03.008
1.0 4 3.0 50 EMS.03.010D EMS.03.010
1.2 4 4.0 50 EMS.03.012D EMS.03.012
1.5 4 4.0 50 EMS.03.015D EMS.03.015
2.0 4 6.0 50 EMS.03.020D EMS.03.020
0.5 3 2.0 38 EMS.03.3005D EMS.03.3005
0.8 3 3.0 38 EMS.03.3008D EMS.03.3008
1.0 3 3.0 38 EMS.03.3010D EMS.03.3010
1.2 3 4.0 38 EMS.03.3012D EMS.03.3012
1.5 3 4.0 38 EMS.03.3015D EMS.03.3015
2.0 3 6.0 38 EMS.03.3020D EMS.03.3020
1.5 6 7.0 50 EMS.03.6015D EMS.03.6015
2.0 6 7.0 50 EMS.03.6020D EMS.03.6020
3.0 6 8.0 50 EMS.03.6030D EMS.03.6030
4.0 6 10.0 50 EMS.03.6040D EMS.03.6040
5.0 6 12.0 50 EMS.03.6050D EMS.03.6050
6.0 6 14.0 50 EMS.03.6060D EMS.03.6060
6.0 6 20.0 60 EMS.03.60601D EMS.03.60601

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
