EMS.02 Square 2 Flute Upcut Spiral Bit

EMS.02 Square 2 Flute Upcut Spiral Bit
EMS.02 Square 2 Flute Upcut Spiral Bit
EMS.02 Square 2 Flute Upcut Spiral Bit
Request a Quote
  • Made from uncoated and coated prime grade carbide
  • Provides exceptional tool life improvements in the machining of various materials
  • Available in high speed steel or solid carbide in a variety of lengths, angles and standards

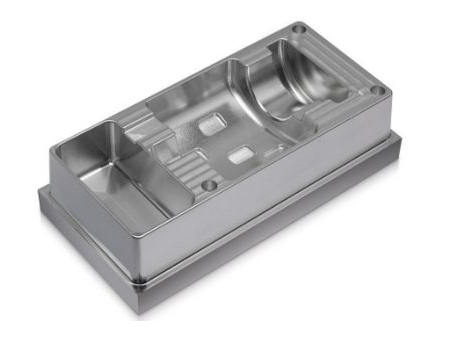

Application
Product Specifications
Coating DLC/Diamond HRC Aluminum / Copper Alloy / Acrylic / Wood / Resin
Helix Angle 30°/35°/37° Shank Cylindrical H6
Material IMC™ Carbide Rod Tolerance on Cutting Diameter 0-0.030
Square 2 Flute Upcut Spiral Bit
Unit: mm
Mill Dia.
D1
Shank Dia.
D2
Flute length
L1
O.A.L
L2
AITin Coated Click to Order Non-Coated Click to Order
3.0 4.0 8 50 EMS.02.030D EMS.02.030
4.0 4 11 50 EMS.02.040D EMS.02.040
5.0 6 13 50 EMS.02.050D EMS.02.050
6.0 6 16 60 EMS.02.060D EMS.02.060
8.0 8 20 60 EMS.02.080D EMS.02.080
10.0 10 25 75 EMS.02.100D EMS.02.100
12.0 12 30 75 EMS.02.120D EMS.02.120
0.3 3.0 0.9 38 EMS.02.3003D EMS.02.3003
0.4 3.0 2.5 38 EMS.02.3004D EMS.02.3004
0.5 3.0 2.5 38 EMS.02.3005D EMS.02.3005
0.8 3.0 4 38 EMS.02.3008D EMS.02.3008
1.0 3.0 5 38 EMS.02.3010D EMS.02.3010
1.2 3.0 5 38 EMS.02.3012D EMS.02.3012
1.5 3.0 5 38 EMS.02.3015D EMS.02.3015
1.5 3.0 10 38 EMS.02.30151D EMS.02.30151
2.0 3.0 4 38 EMS.02.3020D EMS.02.3020
2.0 3.0 9 38 EMS.02.30209D EMS.02.30209
2.4 3.0 8 40 EMS.02.3024D EMS.02.3024
3.0 3.0 10 40 EMS.02.3030D EMS.02.3030
3.0 3.0 12 40 EMS.02.30301D EMS.02.30301
1/8“ Shank
Mill Dia
D1
Shank Dia
D2
Flute length
L1
O.A.L
L2
AITin Coated Click to Order Non-Coated Click to Order
0.5 3.175 3.0 38 EMS.02.3105D EMS.02.3105
0.6 3.175 3.0 38 EMS.02.3106D EMS.02.3106
0.8 3.175 5.0 38 EMS.02.3108D EMS.02.3108
1.0 3.175 4.0 38 EMS.02.3110D EMS.02.3110
1.2 3.175 5.0 38 EMS.02.3112D EMS.02.3112
1.5 3.175 6.0 38 EMS.02.3115D EMS.02.3115
2.0 3.175 4.0 38 EMS.02.3120D EMS.02.3120
2.0 3.175 8.0 38 EMS.02.31208D EMS.02.31208
2.4 3.175 5.0 38 EMS.02.3124D EMS.02.3124
2.4 3.175 8.0 38 EMS.02.31248D EMS.02.31248
3.0 3.175 6.0 38 EMS.02.3130D EMS.02.3130
3.0 3.175 10.0 38 EMS.02.31301D EMS.02.31301

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
