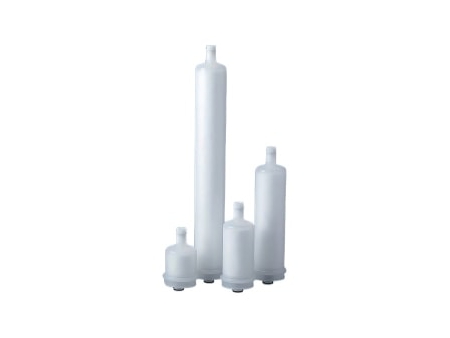

Polypropylene Filter Capsule, PRI Series
Request a Quote
Filter elements for battery electrode slurry filtration

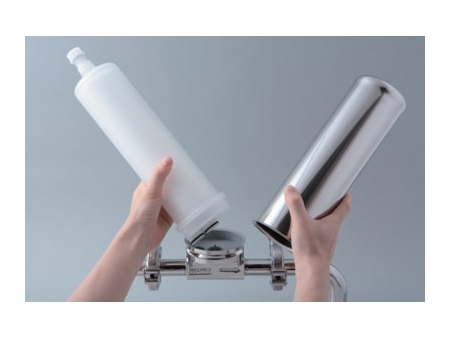

Introducing our polypropylene filter capsule, an integral solution for battery electrode slurry filtration. Designed to streamline your filtration operations, this filter element eliminates the need for manual cleaning, reducing replacement time and labor costs. By ensuring that the internal slurry remains isolated from the external environment, our filter capsule minimizes worker exposure.
Featuring a multi-granular filtration mechanism, the internal filter core effectively captures particles of different sizes in different layers, extending the longevity and enhancing its dirt holding capacity.
Specifications
| Model | PRI |
| Total Length (mm) | 195/325/583 |
| Outside Diameter (mm) | 77 |
| Filter Medium | Polypropylene |
| Housing Material | Polypropylene |
| Exhaust Valve Thread | 1/4" NPT |
| Design Pressure | 0.7Mpa |
| Max. Differential Pressure | 0.3Mpa@20℃ |
| Max. Operating Temperature | 80℃ |
Features
- Gradual interception of particles of different sizes
- Convenient integral design for easy installation
- Eliminates the need for external housing cleaning, ensuring safety
- Minimal filtration medium loss
- Reduced worker exposure with isolated internal core
Applications
- Filtration of slurries
- Coating fluid filtration
- Filtration of colloidal products
- Filtration of liquids containing toxic or harmful substances
