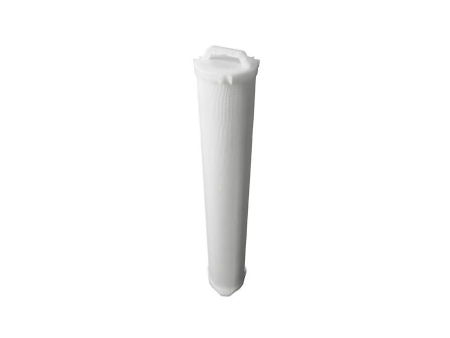

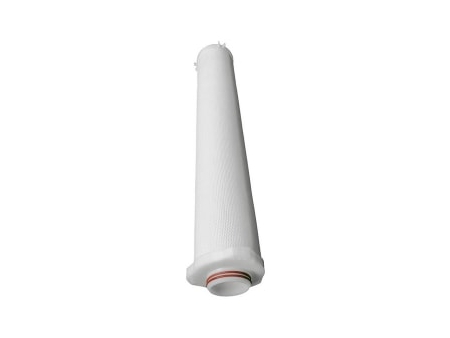

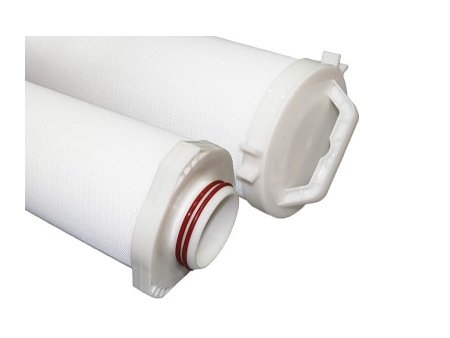

High Flow Filter Cartridge, PHFP Series

High Flow Filter Cartridge, PHFP Series
High Flow Filter Cartridge, PHFP Series
High Flow Filter Cartridge, PHFP Series
High Flow Filter Cartridge, PHFP Series
Request a Quote

With a large diameter of 170mm, each individual filter cartridge boasts an impressive filtration area exceeding 12 m², enabling flow rates of up to 120m³/h. The high throughput capacity significantly reduces the number of filter cartridges required and the overall size of filter housings, offering a higher flow rate within limited space.

This series of high flow filter cartridges is designed for fluid flowing from the outside to the inside. They exhibit ideal chemical compatibility, making them suitable for diverse applications.

Materials of Construction
Support/Drainage Polypropylene
Inner Core/End Cap/Connection Polypropylene
O-ring Nitrile rubber (NBR), Ethylene-propylene rubber (EPR), Fluoro rubber (FPM/FKM), Silicon
Specifications
Length 40",60"
Outside Diameter of Filter Cartridge 170mm
O-ring Size 100mm
Inside Diameter of Filter Cartridge 71.5mm
Micron Rating 1μm, 5μm, 10μm, 15μm, 20μm, 50μm,100μm
Recommended change-out differential pressure 1.5bar/80℃
Applications
  • Prefiltration for reverse osmosis systems, pretreatment for seawater desalination, and purification of various process water.
  • Filtration of power plant condensate water, filtration for power plant hot water.
  • Filtration for bottled water, high fructose, edible oil, soft drinks, and milk.
  • Filtration in the petrochemical industry for oil refineries, paint, diesel dyes, and other processing applications.
  • Filtration in the biopharmaceutical industry for raw materials, solvents, and water.
  • Microelectronics factory wastewater filtration.

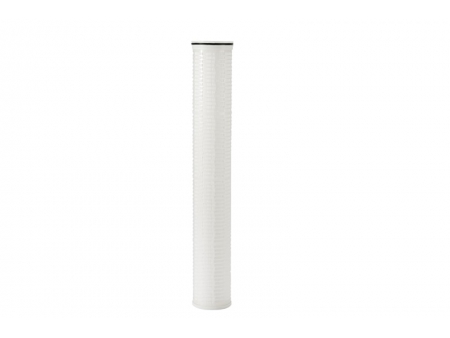

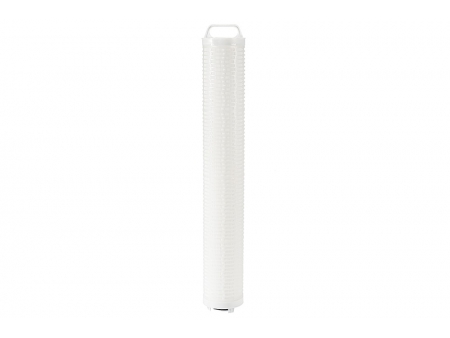

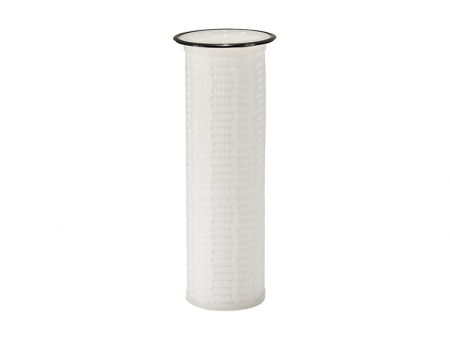

Related products
