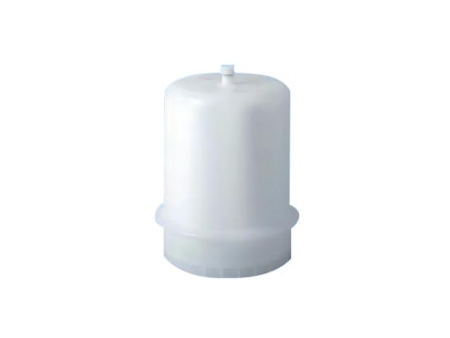

High Flow Polypropylene Filter Capsule, PRS Series
Request a Quote
Filter elements for battery electrode slurry filtration
Introducing our high flow polypropylene filter capsule, expertly designed for battery electrode slurry filtration needs. This all-in-one filtration solution boasts an ultra-high flow rate, making it ideal for high-speed coating lines. The filter capsule houses seven spiral wound inner cartridges, substantially extending the lifespan and reducing the need for frequent replacements. Our thoughtful design includes a bottom drainage feature, facilitating the recycling of liquids.
Specifications
| Model | PRS |
| Total Length (mm) | 378mm |
| Outside Diameter (mm) | 250mm |
| Filter Medium | Polypropylene |
| Housing Material | Polypropylene |
| Exhaust Valve Thread | 1/4" NPT |
| Design Pressure | 0.8Mpa |
| Max. Differential Pressure | 0.5Mpa@20℃ |
| Max. Operating Temperature | 80℃ |
Features
- Ultra-high flow rate for cost-effective operations
- High dirt holding capacity and efficient filtration
- Enhanced chemical resistance
Applications
- Filtration of slurries
- Coating fluid filtration
- Filtration of colloidal products
- Filtration of liquids containing toxic or harmful substances
