Wood Filling Machine

Request a Quote

View All: http://coatinglinesupply.com/8-3-wood-filling-machine.html

Function

The wood filling machine is designed to fill the wood surface to make it smoother so that the coating quality is better.
A special torque motor is adopted. The coating fluid will be extruded to the coating port and it will be filled to the defect area while the substrate passing through.
XMF can customize the feeding port and dimensions of the wood filling machine for customers according to your product size and shape.

Application

The wood filling equipment is designed to fill the pores and defects on the natural wood surface, especially suitable for door jamb, skirting board, window casing and other profiled linear products.

Features

Adopts a screw-type pressure device to guarantee the efficient wood filling performance.
Up and down synchronous transmission provides a high transport stability and uniform and consistent filling effects.
Easy to learn and operate.

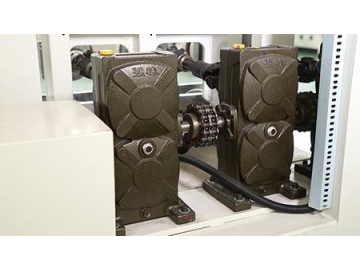

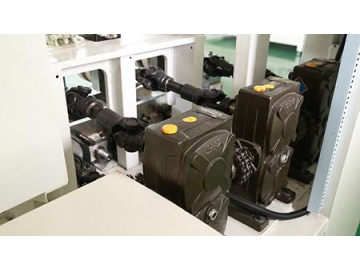

The mechanical transmission device consists of large power motor and large torsion reduction gear, providing good filling performance and strong adhesive force.

Parameter

Voltage	AC 380V three-phase four-wire
Frequency	50HZ
Total power	8KW
Working width	0-120mm
Working thickness	2-60mm
Minimum working length	300mm
Feeding speed	0-20m/min
Dimension	1400mm×1500mm×1800mm

Gallery
