Pulse-Jet Bag Filter Dust Collector, Inertial Separator

Request a Quote

View All: http://forwooddry.com/8-4-2-pulse-jet-bag-filter-dust-collector.html

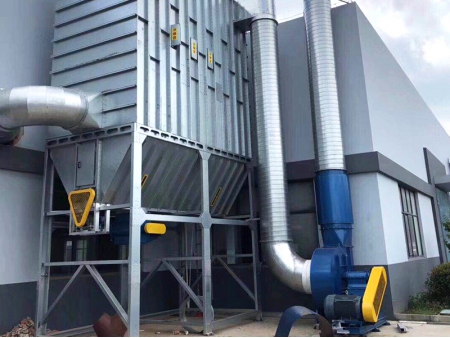

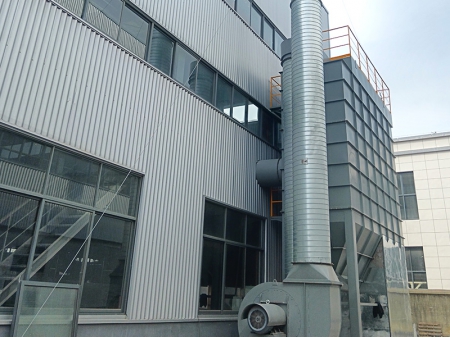

The pulse-jet dust collector works with inertial separation and bag filtration to achieve high filtration efficiency. According to the material characteristics, the dust control system can be custom designed and manufactured. The baghouse dust collectors are suitable for handling:

wood dust such as sawdust, wood shavings from the furniture, flooring and plywood production line
fine dust from wood processing including sawing, sanding
particulate matter in the mining, cement and coal industry

Model:
BGD128
Air Volume (m³/h): 12000-18000
Filtration Area (m³): 96
Efficiency (%): ＞99.5
Static Pressure (Pa): 1200-1500
Motor Power for Discharge (kW): 1.5
Compressed Air Consumption (m³/min): 0.4
Total Weight (kg): 4900

Model:
BGD160
Air Volume (m³/h): 18000-23000
Filtration Area (m³): 120
Efficiency (%): ＞99.5
Static Pressure (Pa): 1200-1500
Motor Power for Discharge (kW): 1.5
Compressed Air Consumption (m³/min): 0.6
Total Weight (kg): 5400

Model:
BGD200A
Air Volume (m³/h): 23000-33000
Filtration Area (m³): 190
Efficiency (%): ＞99.5
Static Pressure (Pa): 1200-1500
Motor Power for Discharge (kW): 1.5
Compressed Air Consumption (m³/min): 0.7
Total Weight (kg): 6450

Model:
BGD200B
Air Volume (m³/h): 33000-40000
Filtration Area (m³): 226
Efficiency (%): ＞99.5
Static Pressure (Pa): 1200-1500
Motor Power for Discharge (kW): 1.5
Compressed Air Consumption (m³/min): 0.7
Total Weight (kg): 6900

Model:
BGD200C
Air Volume (m³/h): 40000-54000
Filtration Area (m³): 320
Efficiency (%): ＞99.5
Static Pressure (Pa): 1200-1500
Motor Power for Discharge (kW): 1.5
Compressed Air Consumption (m³/min): 0.7
Total Weight (kg): 8200

Model	BGD128	BGD160	BGD200A	BGD200B	BGD200C
Air Volume(m³/h)	12000-18000	18000-23000	23000-33000	33000-40000	40000-54000
Filtration Area(m³)	96	120	190	226	320
Efficiency(%)	＞99.5	＞99.5	＞99.5	＞99.5	＞99.5
Static Pressure(Pa)	1200-1500	1200-1500	1200-1500	1200-1500	1200-1500
Motor Power for Discharge(kW)	1.5	1.5	1.5	1.5	1.5
Compressed Air Consumption(m³/min)	0.4	0.6	0.7	0.7	0.7
Total Weight(kg)	4900	5400	6450	6900	8200

Features of Dust Collectors

The bag filter dust collector can easily separate particulate matter with a diameter of less than 10μm.
With high filtration capacity, it’s able to handle mixed air/gas stream with high dust concentrations.
The dust collection system conforms to international emission standards.
Designed with modular construction, it’s easy to assemble and detach.
