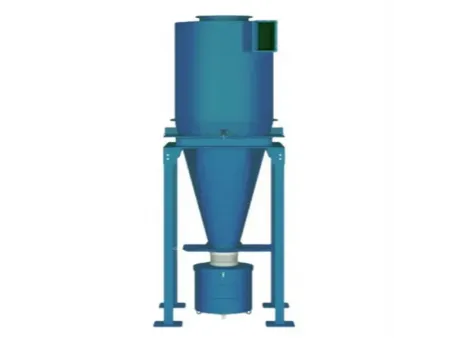

Pulse-Jet Bag Filter Dust Collector, Cyclone Separator
Request a Quote

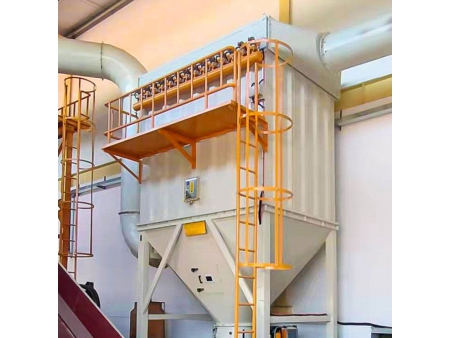

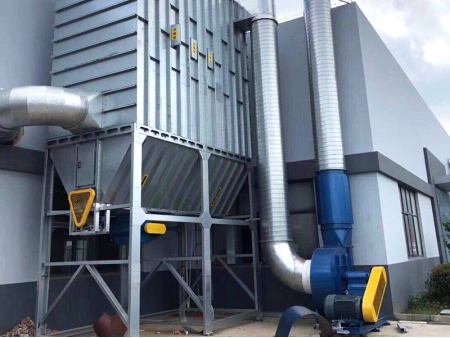

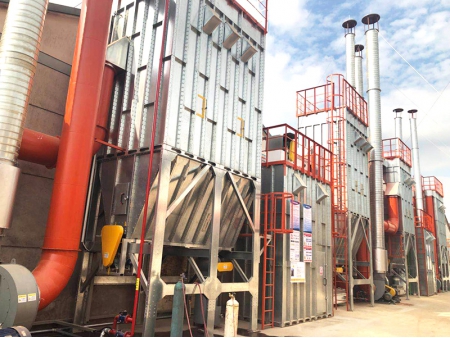

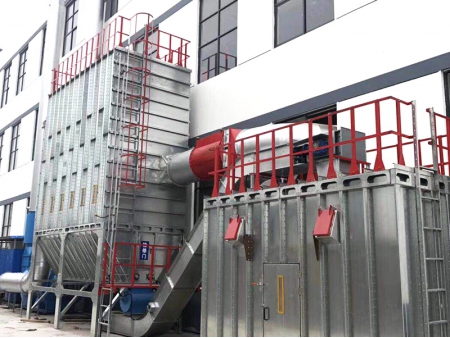

Integrated with cyclonic separating and bag filtraion, the pulse jet bag filter dust collector is a commonly used air pollution control device for the separation of dust particles from an air/gas stream. Cyclonic separation and mechanical filtration offer extremely high filtration capacity. Cleaning with pulse jet baghouses, this dust collection system is widely used to handle wood dust, composites, cement, dry powder, sand, welding smoke and others.
- Model: MCX||-61
- Air Volume (m³/h): 13000-14500
- Filtration Area (m³): 85
- Efficiency (%): ＞99.5
- Static Pressure (Pa): ＜1200
- Compressed Air Consumption (m³/min): 0.3
- Total Weight (kg): 2700
- Waste Bin Capacity (m³): ＞4*4*4
- Model: MCX||-91
- Air Volume (m³/h): 19000-22200
- Filtration Area (m³): 130
- Efficiency (%): ＞99.5
- Static Pressure (Pa): ＜1200
- Compressed Air Consumption (m³/min): 0.5
- Total Weight (kg): 3600
- Waste Bin Capacity (m³): ＞4*4*4
- Model: MCX||-127
- Air Volume (m³/h): 27000-32000
- Filtration Area (m³): 180
- Efficiency (%): ＞99.5
- Static Pressure (Pa): ＜1200
- Compressed Air Consumption (m³/min): 0.6
- Total Weight (kg): 5100
- Waste Bin Capacity(m³): ＞4.5*4.5*4
- Model: MCX||-169
- Air Volume (m³/h): 36000-42500
- Filtration Area (m³): 240
- Efficiency (%): ＞99.5
- Static Pressure (Pa): ＜1200
- Compressed Air Consumption (m³/min): 0.6
- Total Weight (kg): 6700
- Waste Bin Capacity (m³): ＞5*5*4.5
- Model: MCX||-169B
- Air Volume (m³/h): 45000-54000
- Filtration Area (m³): 300
- Efficiency (%): ＞99.5
- Static Pressure (Pa): ＜1200
- Compressed Air Consumption (m³/min): 0.8
- Total Weight (kg): 7600
- Waste Bin Capacity (m³): ＞5*5*4.5
- Model: MCX||-217B
- Air Volume (m³/h): 56000-68000
- Filtration Area (m³): 380
- Efficiency (%): ＞99.5
- Static Pressure (Pa): ＜1200
- Compressed Air Consumption (m³/min): 0.85
- Total Weight (kg): 9800
- Waste Bin Capacity (m³): ＞6*6*4.5
| Model | MCX||-61 | MCX||-91 | MCX||-127 | MCX||-169 | MCX||-169B | MCX||-217B |
| Air Volume(m³/h) | 13000-14500 | 19000-22200 | 27000-32000 | 36000-42500 | 45000-54000 | 56000-68000 |
| Filtration Area(m³) | 85 | 130 | 180 | 240 | 300 | 380 |
| Efficiency(%) | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 | ＞99.5 |
| Static Pressure(Pa) | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 | ＜1200 |
| Compressed Air Consumption(m³/min) | 0.3 | 0.5 | 0.6 | 0.6 | 0.8 | 0.85 |
| Total Weight(kg) | 2700 | 3600 | 5100 | 6700 | 7600 | 9800 |
| Waste Bin Capacity(m³) | ＞4*4*4 | ＞4*4*4 | ＞4.5*4.5*4 | ＞5*5*4.5 | ＞5*5*4.5 | ＞6*6*4.5 |
Features of Dust Collectors
- The baghouse dust collector can separate particulate matter with a diameter of less than 10μm in an efficient manner.
- With high filtration capacity, it’s able to handle mixed air/gas stream with high dust concentrations.
- Comparing with class II dust collectors, the pulse-jet bag filter dust collector features smaller footprint, lower energy consumption, smaller resistance, and lower investment.
- It has wide application and high practicability due to high efficiency, stable performance, and large amount of air filtration.
- A variety of filter bags are available to adapt to specific materials and conditions.
- Adopting no movable parts ensures easy maintenance.
Flow Diagram of Pneumatic Dust Removal - Conveying - Burning System
- Design, manufacture, installation and trial run of pneumatic dust removal system for wood machining workshop
- Design and manufacture of pneumatic dust removal system for sander
- Design and manufacture of waste conveying–burning system
- Manufacture of efficient pneumatic separators with a variety of specifications
- Manufacture of pneumatic pulse sack-like dust removers with a variety of specifications
- Manufacture of residue conveying fans
