Portable Digital Inclinometer
Request a Quote

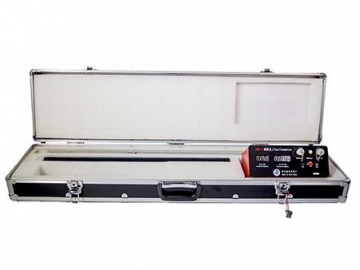

JQX-2 portable digital inclinometer consists of main ground unit, borehole probe, portable manual winch and related accessories. Portable digital inclinometers are widely used in nonmagnetic and weak magnetic geological borehole vertex and azimuth measurement.
Specification| Inclinometer Measurement Range | 0~60°,Accuracy ≤0.1° |
| Azimuth Angle Measurement Range | 0~360° |
| Accuracy | ±4° (Vertex≥3°) , ±6° (2°≤Inclinometer≤ 3°) |
| Operating Temperature | 0℃~ 85℃ |
| Probe Volume | Φ42*980mm |
| Weight | 2kg, weight-gained bar 5kg |
| Downhole Depth Probe | ≤1000m |
| Instrument Volume | 240*95*140mm |
| Weight | 0.8kg |
- Portable digital inclinometer is light-weighted, useful and easy to operate.
- The digital demonstration allows direct reading of vertex and azimuth.
- The inclinometer allows point measurement and continuous measurement.
