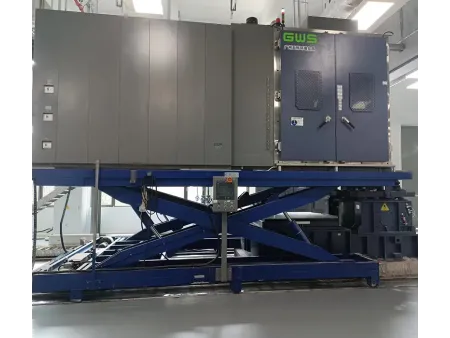

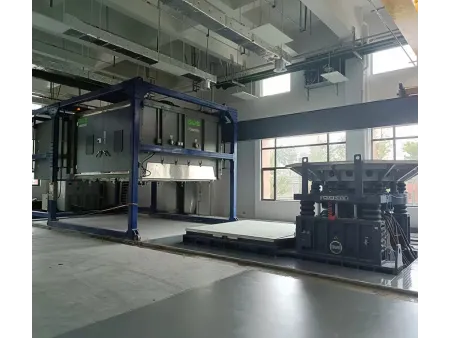

Temperature/Humidity/Vibration Comprehensive Environmental Test Chamber

Request a Quote

Website: http://testchamber-en.com/8-comprehensive-environmental-test-chamber.html

Integrated environmental simulation system covering high/low temperature, humidity and vibration tests for comprehensive environmental testing needs

Combining temperature control, humidity conditioning, and vibration in a unified system, this type of test chamber helps recreate challenging environments that products often face during their lifecycle. By exposing samples to multiple stress factors simultaneously, it provides valuable insights into material durability, mechanical stability, and long-term reliability.

Standard Configuration

Two cable ports (Ø100 mm), one on each side, supplied with grey soft rubber plugs and covers
Hour meter
1 observation window (insulating glass with transparent heating film)
2 sets of specimen racks
1 sample power control terminal
1 RS-485 communication port
1 RJ-45 Ethernet port
USB port

Features

Capable of fast temperature changes, with mechanical cooling rates up to 15 °C/min and liquid nitrogen-assisted cooling up to 30 °C/min
Electronic expansion valve technology optimizes cooling efficiency while lowering energy use
Precise control system ensures stable performance, keeping temperature fluctuation within ±0.5 °C and maintaining uniform test conditions

Common Test Applications

Thermal cycling at high and low temperatures
Constant temperature and humidity conditioning
Alternating environmental conditions
Comprehensive stress screening under vibration

Technical Parameters

Model CW (with humidity control) CT (without humidity control)		CW/T0670W5T CW/T0670W10T CW/T0670W15T	CW/T1270W5T CW/T1270W10T CW/T1270W15T	CW/T2770W5T CW/T2770W10T CW/T2770W15T	CW/T3470W15	CW/T8070W5 CW/T8070W10
Chamber volume (m³)		0.62	1.2	2.73	3.37	8.0
Performance	Temperature range	-70℃～ 150℃
	Humidity range (only models with humidity control)	(20～98) %RH/ (20～85) ℃
	Temperature fluctuation	≤0.5℃
	Temperature deviation	±1.5℃
	Humidity deviation (only models with humidity control)	±3.0%RH (humidity >75%RH), ±5.0%RH (humidity ≤75%RH)
	Temperature change rate	5/10/15 ℃/min			15 ℃/min	5/10 ℃/min
	Standard load	15kg aluminum ingot	50kg aluminum ingot	100kg aluminum ingot	150kg aluminum ingot	200kg aluminum ingot
Internal dimensions (mm)	W	800	1000	1300	1500	2000
	H	1100	1200	1500	1500	2000
	D	700	1000	1400	1500	2000
Power supply		380V (three phase four wire protective grounding wire)
Rated power (kW)		W5:25, W10:36, W15:47	W5:43, W10:56, W15:80	W5:56, W10:85, W15:115	W15:125	W5:95, W10:135
Condensing method		Water-cooled

Performance values are based on operation in ambient conditions between 5 °C and 35 °C, with relative humidity up to ≤85% and cooling water temperatures not exceeding ≤ 28 °C. Measurements were taken with no samples inside the chamber.

Do you offer custom-built temperature, humidity, and vibration combined test chambers?

Yes. We provide a variety of customization options to adapt the test chamber configuration to your specific requirements. You’re welcome to discuss your project with our sales and technical team to explore tailored solutions.
