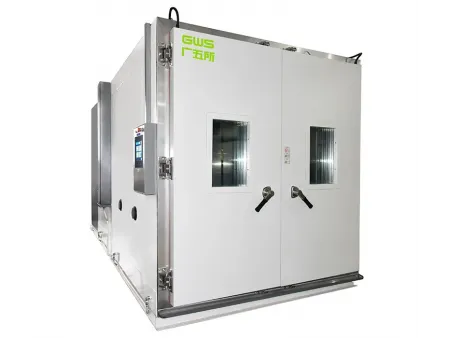

Solid Walk-in Temperature & Humidity Test Chamber
Environmental chamber designed with one-piece welded construction for high/low temperature and humidity simulation
Built as a fully welded single structure, solid walk-in chambers offer excellent sealing performance and structural integrity for demanding environmental simulations. Their robust construction helps maintain stable conditions over long test cycles, making them ideal for validating the reliability and lifespan of large components and assemblies in controlled climates.
- High- and low-temperature exposure
- Constant temperature and humidity conditioning
- Alternating climate cycles
- Environmental stress testing
- 2 cable ports (Ø100 mm), supplied with grey soft rubber plugs and covers
- Hour meter
- Observation window (insulating glass with transparent heating film)
- 1 sample power control terminal
1 RS-485 communication port
1 RJ-45 Ethernet port - USB port
- Emergency stop
Mold growth testing function
Application: Enables mold growth and cultivation tests to simulate long-term exposure to humid environments.
Infrared radiation simulation
Application: Enables testing of how samples withstand prolonged infrared radiation, helping assess material durability under thermal stress.
- The chamber can be fully customized, including the interior size, target temperature range, and ramp speed, so it adapts to different testing requirements without compromise.
- All internal seams are TIG welded in a continuous process, ensuring excellent airtightness and structural strength.
- It’s possible to add specialized functions for testing photovoltaic panels, automotive components, semiconductors, and new energy systems.
- An electronic expansion valve manages cooling capacity precisely, reducing energy use while maintaining consistent performance.
| Model | | | | | ||
| Chamber volume (m³) | 6.3 | 8.4 | 10.5 | 12.6 | ||
| Performance | Temperature range | -70℃~ 120℃ (customizable) | ||||
| Humidity range (only models with humidity control) | (20~98) %RH/ (20~85) ℃ | |||||
| Temperature fluctuation | 0.6℃ | |||||
| Temperature deviation | ±2.0℃ | |||||
| Humidity deviation (only models with humidity control) | ±3.0%RH(>75%RH) ±5.0%RH(≤75%RH) | |||||
| Temperature rise/drop rate (time) | Customizable | |||||
| Internal dimensions (mm) | W | 2000 | ||||
| H | 2100 | |||||
| D | 1500 | 2000 | 2500 | 3000 | ||
Performance values are based on an ambient temperature between 15 °C and 35 °C, relative humidity not exceeding 85%, and cooling water temperatures up to 28 °C. Measurements were taken with no samples inside the chamber.
Some models can meet specific test standards, including PV1200/PV2005, PR303.5/PR308.2, and DBL5471/Fuvo. For details about compliance, please contact our technical support team.
