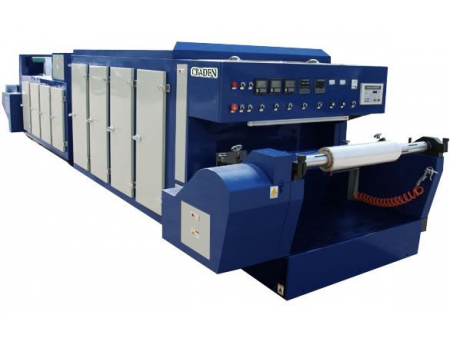

Hologram De-Metalizing Machine

Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Hologram De-Metalizing Machine
Request a Quote
Ideal for demetallizing hologram and metallized labels

Our demetalizing machine is widely used for partially washing-away the aluminizing layer or patterns on the packaging material, by chemical methods, thus giving prominence to logo position. The window size and shape are customizable.

Demetalizing machines used to produce see-through window on packaging materials are available upon customers' requirement.

Suitable Materials

This demetalizing machine is suitable for variety of packaging materials, including BOPP, PET, PVC, and more.

Applications

Hard-system Holographic Embossing Machine Model SEKH1050 is used for producing see-through laser holographic film for lamination purpose, hot-stamping foil, transferred holographic film and paper, which widely applied to packing and decorating field.

We are a specialized hard system holographic embossing machine manufacturer based in China. We also provide corrugated cardboard forming machine, rotary head film blowing machine, hot foil stamping and die cutting machine, and more.

Working Principle

Firstly, the desired patterns will be etched on a metallic nickel plate. Then our holographic embossing machine will emboss the patterns onto various packaging materials, like BOPP film, coated PET films, PVC materials, and more. So that the customer can obtain the anti-counterfeit packaging materials.

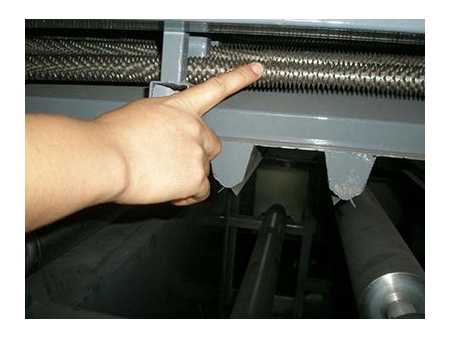

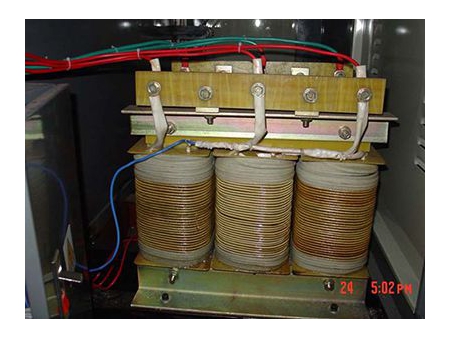

More Photos
Features of Hologram De-Metalizing Machine
  • Processed packaging materials are extensively used in flexible packaging industries for various products. They can not only provide anti-counterfeit function, but also highlight the company LOGO or any other useful information.
  • This demetalizing machine is designed with PVC chemical reaction tank and stainless steel guide roller which are characterized by strong corrosion resistance and good durability.
  • Its rationally designed drying system provides our demetalizing machine with a high drying speed. Washed materials have the similar transparency with original materials.
  • Low cost and environmentally friendly. Each 10 hours working time, our demetalizing machine only costs USD 0.7 on its chemical solutions. Additionally, the solution is colorless, odorless, nontoxic, and produces no waste.

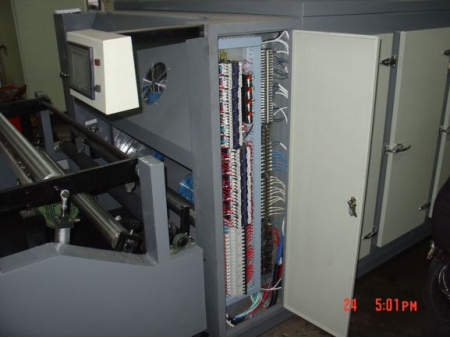

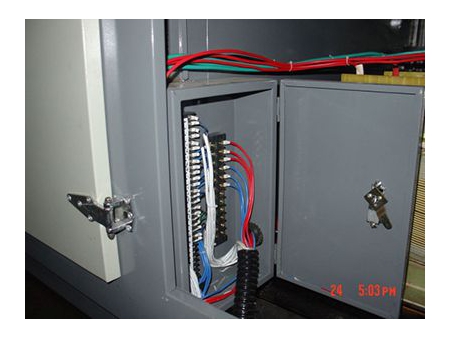

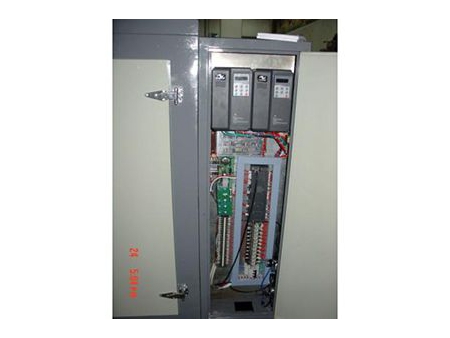

Electric Box

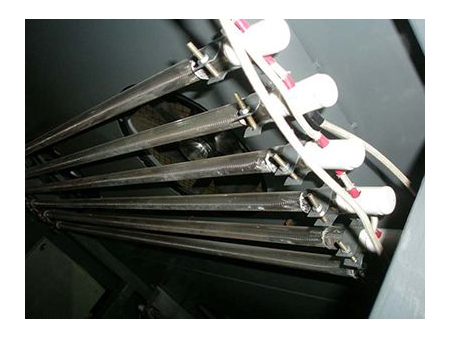

Heating Unit

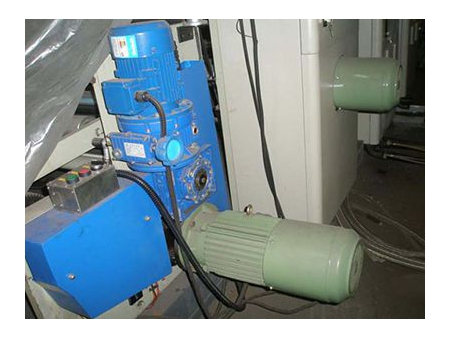

Motor of Unwinding Unit
Technical Specifications of the Hologram De-Metalizing Machine
Model SCKX800/1100/1200M
Material width 800/1100/1200mm
Working speed 50-80m/min
Dia. of material 500mm
Motor 2-3kw
Water pressure 0.2mpa
Power 28-38kw
Machine weight 3300-4300kg
Machine dimension 7200 × 1800-2100 × 1500mm

As a China-based manufacturer of demetalizing machine for metalized film and laser holographic film, we also offer label slitting machine, die cutting and creasing machine, disposable plastic glove making machine, and more.

At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
