Mechanical Seal Heat Exchange Auxiliary Equipment
Request a Quote
View All: http://millingsupplier.com

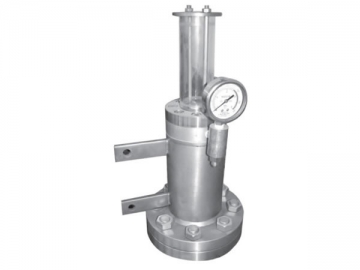

The mechanical seal heat exchange auxiliary equipment is mainly used for the liquid sealing circulation of the high-temperature low-pressure mechanical seals to achieve the purpose of circulating cooling. During using, the pressure of the air pressurization interface should be kept within the range of 0.05 to 0.1MPa. To improve the cooling effect, a helical device should be set inside the seal cavity.
| Model | FMY-G-168 | FMY-G-114 |
| Working pressure | 0~2.5MPa | 0~2.5MPa |
| Working temperature | -60~200℃ | -60~200℃ |
| Heat exchange area | 0.5m2 | 0.25 m2 |
Miyou Group is an experienced mechanical seal manufacturer in China. We provide mechanical seal heat exchange auxiliary equipment, pump using mechanical seal, horizontal sand mill, nanometer tin powder, and more.
Related Names
Heat Transfer Device
