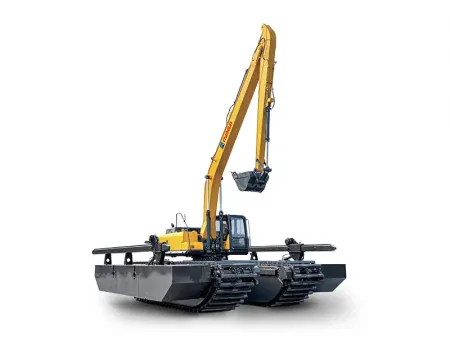

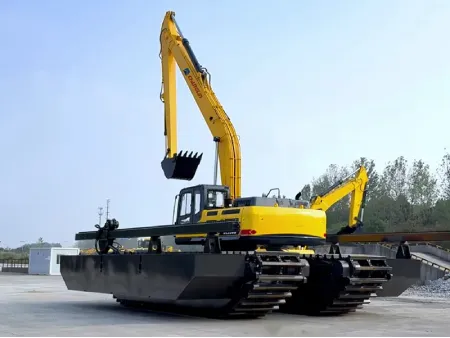

ZG330D Amphibious Excavator
Engineered for soft terrain and waterlogged environments, the amphibious excavator features a sealed pontoon flotation chassis in place of the traditional undercarriage, enabling stable performance where standard machines can’t operate. It operates with stability in swamps, wetlands, and shallow water zones, making the floating excavator ideal for dredging, flood control, and environmental remediation tasks.
- Operating weight 55600 kg
- Rated power 241kW@2000rpm
- Overall length 15200 mm

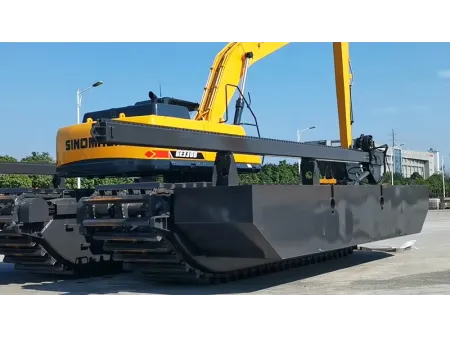

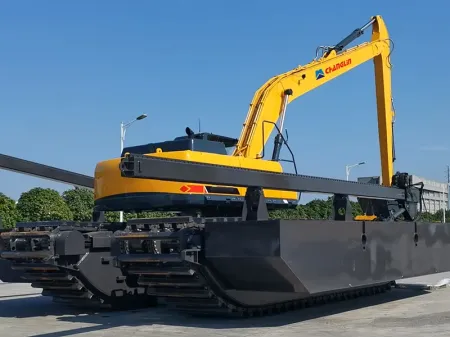

Modified from a standard excavator, the steel pontoon chassis provides sufficient buoyancy to enable operations in swamps, marshes, and water-rich environments where conventional machines cannot operate safely.
High-precision and reliable fuel injection system offers real-time control over fuel delivery, improving combustion efficiency and reducing fuel consumption.
Advanced hydraulic system with large-capacity pumps and valves ensures greater flow area and lower pressure loss, resulting in smoother and more responsive machine control.
Equipped with an 8-inch high-resolution anti-glare color monitor, the intelligent monitoring system provides real-time alerts, maintenance reminders, and diagnostic information to support operational safety and efficiency.
- Operating weight 55600kg
- Rated power 241kW@2000rpm
- Rated bucket capacity 0.8m³
- Overall length 15200mm
- Overall width 8200mm
- Overall height 4160mm
- Turntable width 3060mm
- Track length on ground 6105mm
- Track shoe gauge 3265mm
- Standard track width 1460mm
- Max. digging radius 15075mm
- Max. digging radius at ground level 14790mm
- Max. digging depth 10020mm
- Max. digging height 13790mm
- Max. dumping height 11280mm
- Rated power 214kW@2000rpm
