Request a Quote

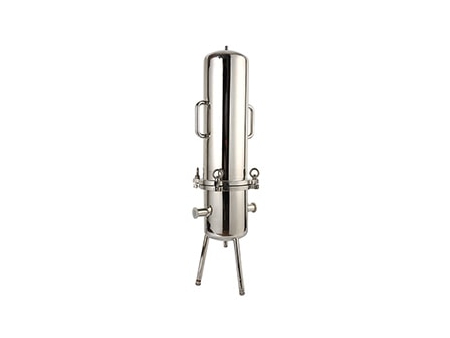

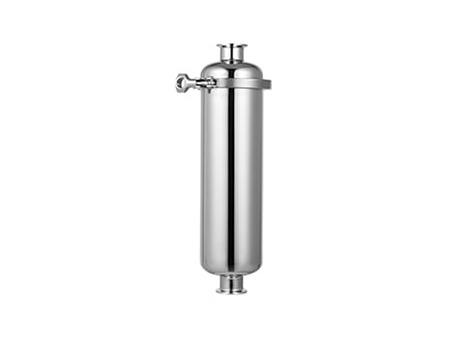

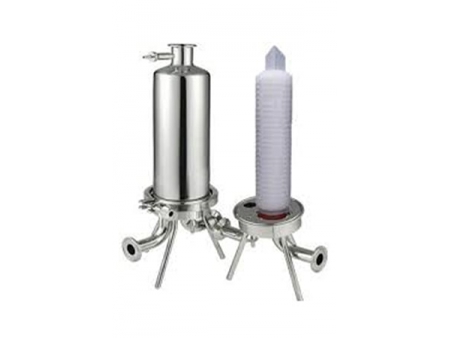

Our sanitary filter housing solutions are designed to meet sanitary and GMP standards. Offering high-flow sanitary filtration, our filter housing solutions accommodate varying filter cartridge configurations. The housing ensures thorough cleaning, complete drainage, and hygiene compliance, making it an ideal choice for industries such as biotechnology, pharmaceuticals, and pure water processing.

Materials of Construction
Filter Housing & Filter System 304/316L
Vent/Drain Valve 304/316L
Legs 304/316L
O-ring Silicone/Fluoro Rubber/EPDM/PTFE
Variants Single Core Filter, Multi-Core Filter, Gas Filter
Connection Methods
Connection Clamp
Inlet/Outlet Quick-Connect
Vent Valve Quick Release Valve
Drain Valve Quick Release Valve
Pressure Gauge 1.5" Quick-Connect
Surface Treatment
Polishing Type Mirror Polishing/ Electrolytic Polishing
Polishing Precision Inner Wall 0.3μm/ Outer Wall 0.4μm
Specifications
Design Pressure 0.6MPa/1.0Mpa
Max. Operating Temperature 130℃
Sterilization Method Online or Sterilization Cabinet: 121±2℃ 30min/cycle

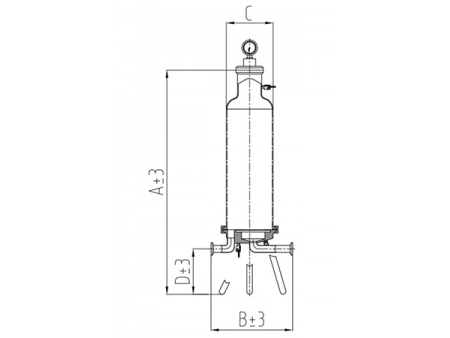

2D Diagram

Single Cartridge Sanitary Filter Housing

No. of Cores Length A Total Height (mm) B Inlet-Outlet Distance (mm) C Diameter (mm) D Housing Clearance Height (mm)
1 10" 590 187 101.6 132
20" 870 187 101.6 132
30" 1110 187 101.6 132
40" 1370 187 101.6 132

Multi-Cartridge Sanitary Filter Housing

No. of Cores Length A Total Height (mm) B Inlet-Outlet Distance (mm) C Diameter (mm) D Housing Clearance Height (mm)
3 10" 760 312 200 200
20" 1040
30" 1270
40" 1540
5 10" 790 410 250 200
20" 1070
30" 1300
40" 1570
7 10" 800 426 267 200
20" 1080
30" 1310
40" 1580
9 20" 1160 460 300 200
30" 1390
40" 1660
12 30" 1440 560 337 200
40" 1710
Applications
  • Food processing, beverage production, and dairy processing.
  • Biopharmaceuticals, breweries, and fine chemicals.
