Request a Quote

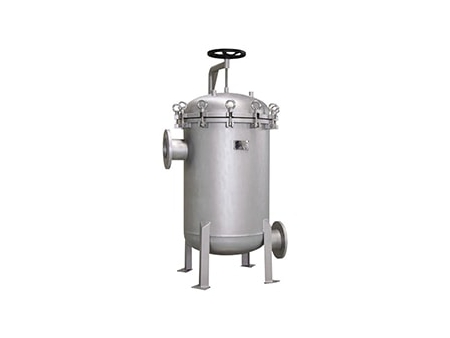

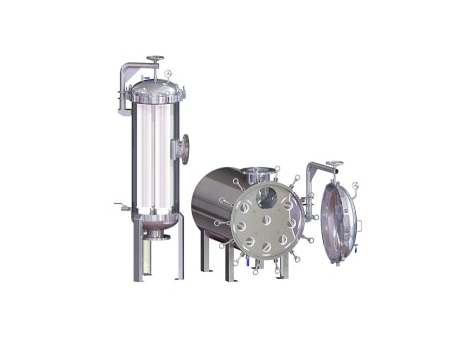

Discover our advanced high flow liquid filter housing, meticulously engineered for robust filtration needs. Designed to accommodate high-flow filter cartridges, our stainless steel housing is ideal for applications demanding efficient filtration, particularly in the water treatment sector.

Our high flow liquid filter housing offers both vertical and horizontal configurations, catering to different installation requirements. For standard 10-core to 40" filters, the vertical design is commonly preferred. In cases where water flow exceeds 1000 tons per hour, the horizontal structure provides an ideal fit. Additionally, this housing can be paired with 60" filter cartridges, ensuring high flow rates with ease of cartridge replacement.

Materials of Construction
Filter Housing & Filter System 304/316L
Vent/Drain Valve 304/316L
Eyebolt 304/316L
Legs 304/316L
O-ring Silicone/Fluoro Rubber/EPDM/PTFE
(*Customization available for special requirements)
Connection Methods
Connection Eyebolt
Inlet/Outlet Flange
Vent Valve G1/2"
Drain Valve G1"
Pressure Gauge M14*1.5
Surface Treatment
Polishing Type Mirror Polishing/ Electrolytic Polishing/ Sandblasting
Polishing Precision Inner Wall 0.6μm/ Outer Wall 0.8μm
Specifications
Design Pressure 0.6MPa/1.0Mpa
Max. Operating Temperature 130℃

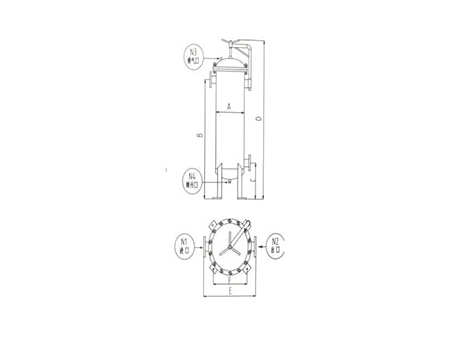

2D Diagram

Dimensions of the Vertical Filter Housing

No. of Cores Length Dimensions (mm) Inlet/Outlet (Flange)
A B C D E F N1 N2
1 40" ⌀219 1530 335 1750 380 / DN80 DN80
3 ⌀400 1655 405 2170 560 400 DN150 DN150
4 ⌀450 1725 445 2390 610 440 DN150 DN150
5 ⌀500 1840 490 2580 700 480 DN200 DN200
7 ⌀550 1860 500 2600 750 510 DN250 DN250
9 ⌀650 1890 530 2660 890 585 DN250 DN250

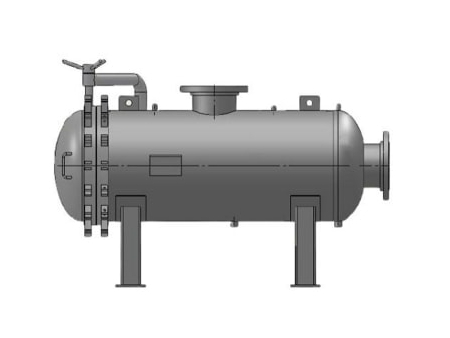

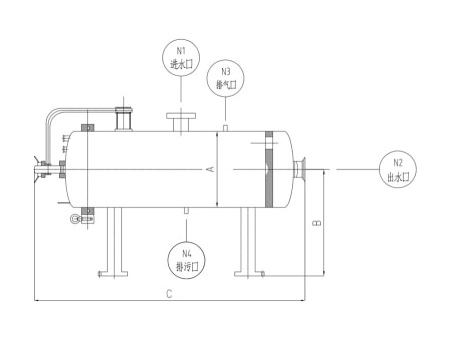

Dimensions of the Horizontal Filter Housing

No. of Cores Length Dimensions (mm) Inlet/Outlet (Flange)
A B C D E F N1 N2
1 40" ⌀219 300 1750 / / / DN80 DN80
3 ⌀400 400 2170 / / / DN150 DN150
4 ⌀450 500 2390 / / / DN150 DN150
5 ⌀500 500 2580 / / / DN200 DN200
7 ⌀550 600 2600 / / / DN250 DN250
9 ⌀650 800 2660 / / / DN250 DN250
Features
  • Internally and externally mirror-polished, achieving a contact roughness of 0.6μm, meeting stringent hygiene standards.
  • Scientifically crafted design with ideal sealing, leaving no dead angles and ensuring easy cleaning.
  • Compact design, optimizing space utilization.
Applications
  • Ideal for various high flow liquid filtration processes.
  • Efficiently handles high flow wastewater treatment, sewage treatment, desalination, and cleaning fluid filtration.
  • Ideal for applications in tap water filtration, sewage treatment, and seawater desalination.
