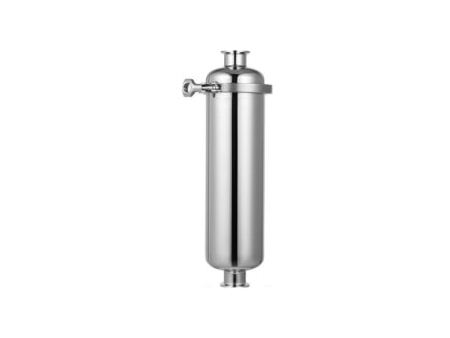

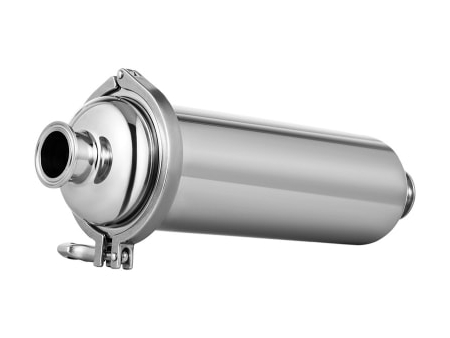

Introducing our in-line filter housing, a sanitary solution for single cartridge filtration. Designed with a "top-in, bottom-out" filtration structure, these filter housings offer compactness, ease of use, and cost-effectiveness. Complying with sanitary filtration and GMP requirements, the housing structure leaves no blind spots, facilitating easy cleaning and thorough drainage.

Materials of Construction
Filter Housing & Filter System 304/316L
Vent/Drain Valve 304/316L
Legs 304/316L
O-ring Silicone/Fluoro Rubber/EPDM/PTFE
Connection Methods
Connection Clamp
Inlet/Outlet Quick-Connect
Vent Valve Quick Release Valve
Drain Valve Quick Release Valve
Pressure Gauge 1.5" Quick-Connect
Surface Treatment
Polishing Type Mirror Polishing/ Electrolytic Polishing
Polishing Precision Inner Wal 0.3μm/ Outer Wall 0.4μm
Specifications
Design Pressure 0.6Mpa/1.0Mpa
Max. Operating Temperature 130℃
Sterilization Method Online or Sterilization Cabinet: 121±2℃ 30min/cycle

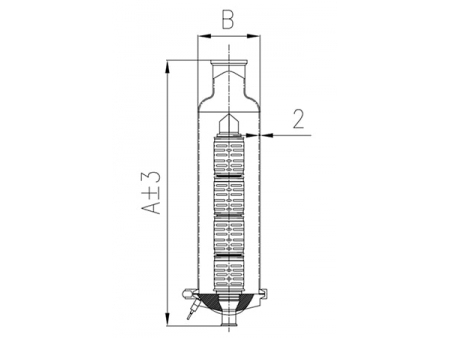

2D Diagram

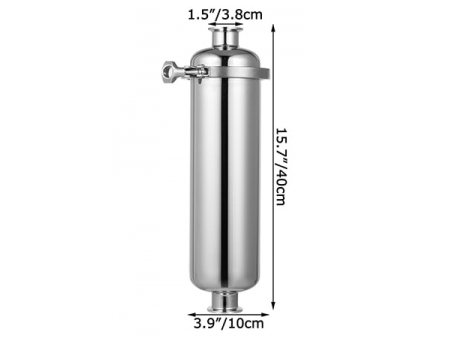

Dimensions

No. of Cores Length A Total Height (mm) B Diameter (mm)
1 5" 320 101.6
10" 420
20" 700
30" 930
Applications
  • Suitable for sterilization and impurity removal in biotechnology and pharmaceutical industries.
  • Ideal for removing solid impurities from liquids and gases in industries like petroleum, chemicals, food, and light manufacturing.
You may also be interested in

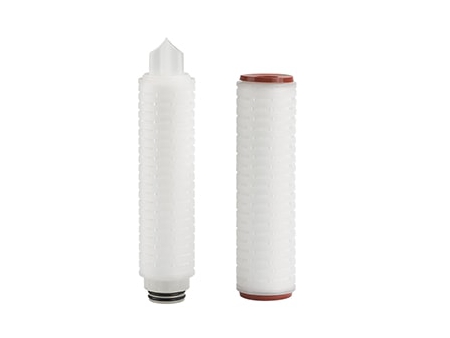

  • Filter Medium: Polypropylene
