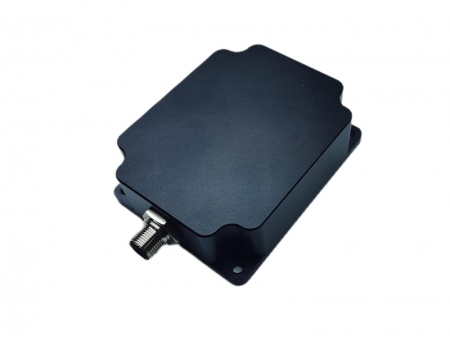

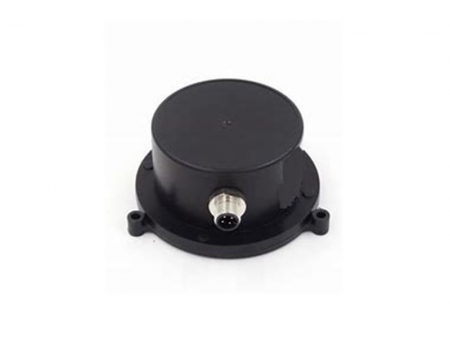

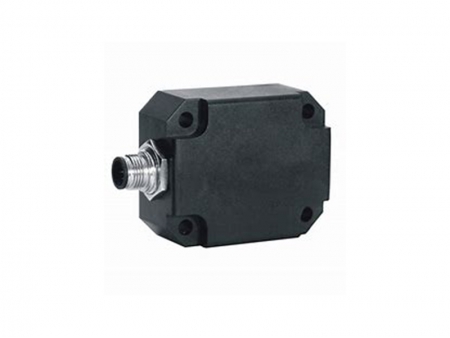

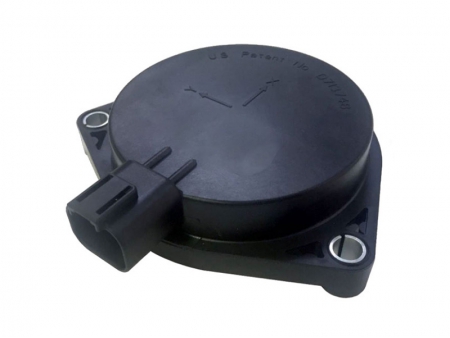

ADS-I Inclination Sensor
Request a Quote
Yuanben has developed and produced a high-precision biaxial inclination sensor (also known as tilt sensor). The maximum measurement range of biaxial can reach ±90°, with CAN open and J1939 communication interface output.
Features
- Stable communication, cost-effective
- All parts are industrial grade, with reliable preformance
- Protection grade of IP67
- Direct current wide voltage supply
Applications
- Aerial work platform safety monitoring
- Angle measurement, inclination attitude recorder
- Security control and monitoring
- Cement pump truck
Technical Parameters
| Item | Test Condition | Minimum Value | Typical Value | Maximum Value | |
| Operating Voltage (V) | Direct Current | 8 | 12 | 30 | |
| Static Operating Current (mA) | VCC=12V (non-loaded) | 15 | 20 | 25 | |
| Operating Temperature (℃) | -40 | 85 | |||
| Measurement Range (°) | Dual Axis | ±10, ±30, ±80, ±90 | |||
| Resolution (°) | Measuring range≤±90 | 0.01, 0.05, 0.1 | |||
| Accuracy (°) | Measuring range ≤±10 | Resolution: 0.01 | 0.05 | ±0.1 | |
| Resolution: 0.1 | ±0.2 | ±0.3 | |||
| Measuring range ≤±30 | Resolution: 0.01 | ±0.1 | ±0.2 | ||
| Resolution: 0.1 | ±0.3 | ±0.4 | |||
| Measuring range <±60 | Resolution: 0.01 | ±0.15 | ±0.3 | ||
| Resolution: 0.1 | ±0.4 | ±0.5 | |||
| Measuring range ≤±80 | Resolution: 0.01 | ±0.4 | ±0.8 | ||
| Resolution: 0.1 | ±0.8 | ±1 | |||
| ±80<measuring range≤±90 | ±5 | ±10 | |||
| Repeatability (°) | Measuring range ≤±10 | Resolution: 0.01 | 0.04 | ||
| Resolution: 0.05 | ±0.1 | ||||
| Resolution: 0.1 | ±0.2 | ||||
| Measuring range ≤±30 | Resolution: 0.01 | ±0.06 | |||
| Resolution: 0.1 | ±0.25 | ||||
| Measuring range <±60 | Resolution: 0.01 | ±0.1 | |||
| Resolution: 0.1 | ±0.35 | ||||
| Measuring range <±80 | Resolution: 0.01 | ±0.2 | |||
| Resolution: 0.1 | ±0.5 | ||||
| Measuring range ≤±90 | ±4 | ±8 | |||
| Zero Position Temperature Drift (℃) | -40 to 85℃ | 0.005 | 0.01 | ||
- Note:
- Resolution refers to the smallest change that can be detected within the measurement range, the greater the measurement angle, the lower the resolution.
- These parameters are the angle data when the filter coefficient is 5 after 10 seconds of power-on.
- Zero point temperature drift refers to the angle offset when the ambient temperature changes (the output angle is constant at room temerature).
