Semi-Automatic Terminal Housing Insertion Machine
Request a Quote
- Automates housing loading and insertion, reducing manual workload. Operators only need to place the housings into the vibration tray and align the ribbon cables on the fixture, while the wire processing machine completes the rest of the process automatically.
- Supports adjustments to accommodate different product specifications by fine-tuning the appropriate components, providing strong versatility for various housing sizes.

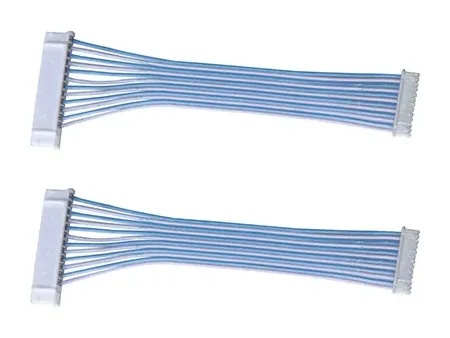

- Capable of producing 2-10P housings, meeting a wide range of assembly requirements for discrete wire cable applications.
Technical Data
| General | Model | |
|---|---|---|
| Dimensions (L×W×H) | 900×900×800mm | |
| Weight | Approx. 150kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 10A | |
| Power | 500W | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1m | |
| Functions | Crimping Capacity | 500-900 wires/hr (depending on wire material and feeding speed) |
| Number of Pins | 2-10P |
