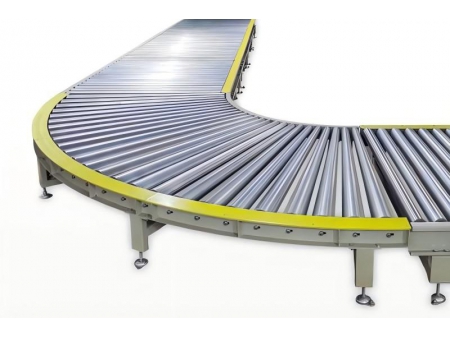

90-Degree Curve Conveyor
Request a Quote
The 90-degree curve conveyor, also known as a right-angle conveyor, is designed for space-restricted logistics scenarios to achieve right-angle (90° turning) material transfer. Using specially designed plastic modular belts or roller structures, it smoothly transitions materials between horizontal and vertical directions. This curve conveyor is widely applied in corrugated board production lines and other scenarios to overcome the layout limitations of linear conveyors.
- Space Optimization: Compact 90° turning design minimizes footprint, ideal for narrow workshops and complex layouts.
- Seamless Integration: Integrates with straight conveyors, transfer units, and turntables for continuous multi-direction conveying, and minimizes manual labor.
- High Stability: Synchronous belt or modular belt drive ensures smooth turning with minimal board deviation and board stacking misalignment.
- Rotation angle: Fixed 90° or adjustable (±5° fine adjustment)
- Drive mode: Motorized roller/synchronous belt drive
- Motor power: 0.37–1.5 kW
- Conveying surface: POM modular belt or roller
- Working temperature: –20°C to 80°C
- Control mode: Integrated PLC or independent controller, supports main line integration
- Applicable materials: Corrugated boards, cartons, flat panel materials
