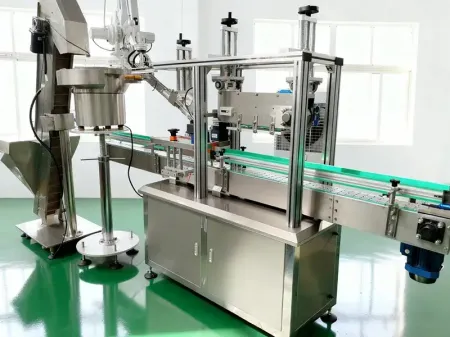

Automatic Snap Capping Machine
Snap-on press capper machine for pressure sealing of snap closures and flip-top caps
Automatic snap capping machine (snap-on capper) is designed to handle press-on style closures for consistent, reliable and efficient sealing.
The snap capper consists of cap sorting, feeding and pressing system, designed with smooth operation, flexible adjustment, compatibility with diverse bottle types and sizes, easy integration to auto production lines. This capping equipment proves sustained high yield, consistent sealing performance and continuous production efficiency whether for stand-alone usage or combination with filling line, making it an ideal choice for food, beverage, cosmetics and chemical industries, especially suitable for sauce, oil and vinegar manufacturing and packaging.
-

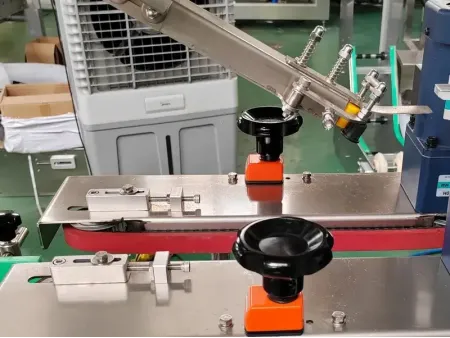

Press-on working station applies controllable vertical and downwards pressure to closures and seal them to the bottles.
- Dual-Tier Bottle Gripper Belts
Supports flexible height and angle adjustments and intelligently synchronizes with the production line rhythm. It facilitates stable and efficient conveying for diverse bottle shapes, delivering a synchronized and high-performance capping experience.
- Chain Plate Conveyor System
Provides stable and continuous bottle supply, ensures the containers are fed to the press-on working station in the correct orientation for a smooth and reliable snap capping workflow.
- Vibratory Bowl Feeder
Automatically sorts and conveys closures, ensuring bulk caps are continuously fed to the snap capping station in a uniform direction for high-efficiency production
| Model | |
| Applied Bottle Height Range | 100ml-1000ml 1000ml-5000ml |
| Applied Cap Size | Dia: 12-120mm |
| Yield of Capping | >99.90% |
| Voltage | 220V 50HZ |
| Power | <0.75KW |
| Air Pressure | 0.4-0.6Mpa for cap elevator |
| Speed Control | Frequency Conversion |
| Single Machine Noise | <=70Db |
| Weight | 450kg |
| Dimension (L*W*H) | 1800*900*1600(mm) |
| Production Capacity | 1000-7200 BPH |
- The 304/316 stainless steel constructure complies with strict international food and cosmetics industrial standards;
- Delivers high automation, improved production efficiency, reliable and consistent sealing performance;
- Adjustable height and gripping angle eliminate the need for mold changes, facilitating simple and quick changeovers for a wide range of cap and bottle formats.
- The compatible design enables an easy setup of automatic packaging line, contributing to improved line efficiency.
