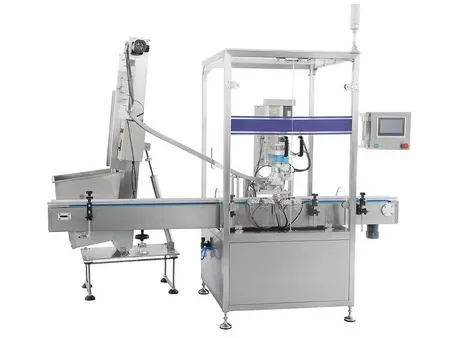

GX-200
Automatic capper for placing and tightening of different caps on bottles
- 80 to 120 Bottles Per Minute
- Ø50 to Ø120 mm Cap Diameter

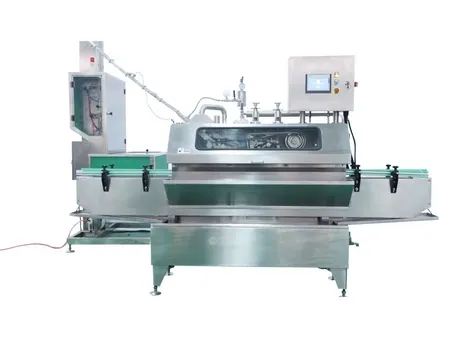

Automatic Screw Capping Machine
Request a Quote
Pharmaceutical Machinery
Packaging EquipmentThe automatic screw capping machine overcomes the limitations of traditional intermittent cappers, such as slow speed, loose capping, and limited application scope. It linear bottle feeding, automatic cap placement, and continuous capping, with an innovative lifting-type cap dropping system to eliminate noise from vibration-based cap feeding, significantly enhancing productivity. Its strong compatibility allows the capper to handle a wide range of bottle and cap sizes with ease and simple adjustments. It is ideal for various industries, including pharmaceuticals, food, and cosmetics, ensuring consistent and efficient capping processes.
Key features

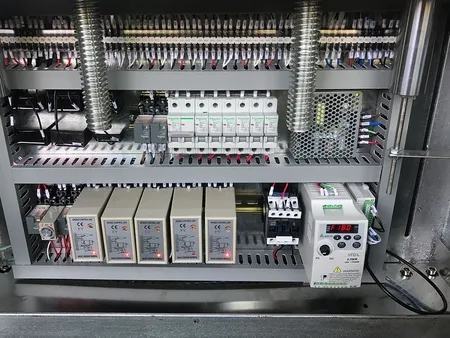

- The capping belt is frequency-controlled with adjustable speed to synchronize perfectly with the conveyor speed.
- Equipped with a step-type lifting belt for fast, low-noise and efficient cap feeding
- Incorporates automatic rejection of improperly oriented caps using weight and air-blowing mechanisms, ensuring smooth cap placement
- Automates sorting, placing, and capping to reduce labor intensity
- The exterior is made from 304 stainless steel, meeting GMP standards.
- Includes optional modules for defective cap rejection, aluminum foil absence detection, and data network integration for data storage and retrieval
Specifications
| Speed | 80- 120 BPM |
| Cap Diameter | Ø50-Ø120mm (customizable) |
| Bottle Height | 60-200mm |
| Power Supply | 1.3kW AC 220V 10% 50Hz 1% |
| Machine Dimensions (L×W×H) | 2400×1400×1550mm |
| Machine Weight | 350kg |
