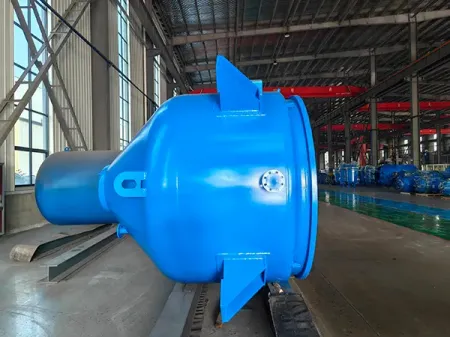

Conical-Bottom Reactor, Glass-Lined Jacketed Reactor
Request a Quote
The conical-bottom reactor is available in capacities from 63l to 40000l and is manufactured in accordance with ASME and PED pressure vessel standards. It is designed for processes that require fast discharge and high cleanliness, and it is widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries. This reactor provides an efficient and stable solution for different production needs.
→
The conical-bottom reactor features a conical bottom head design that allows materials to be discharged quickly and thoroughly. It is especially suitable for reaction and batching processes where discharge efficiency and easy cleaning are important.
Features
- Efficient and complete discharge
With a 60°-120° conical bottom head design, the reactor offers good material flow, reduces the risk of outlet blockage, and helps eliminate cleaning dead zones. - Customized agitator design
The agitator is specially designed according to the cone angle to improve mixing performance in the conical bottom area. - Adaptable structural design
Compared with an elliptical bottom head, the conical bottom structure has slightly lower pressure resistance. In practice, this is usually addressed by increasing the plate thickness to meet specific operating requirements.
