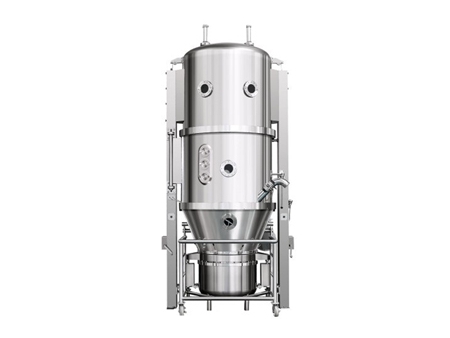

Granulator With Fluid Bed
Introduction
The granulator with fluid bed realizes the combination of machine design and preparation technology. Jiangsu Xiandao provided more than one hundred sets of granulators for customers from China, USA, Japan, Indonesia and Iran. The granulators are all specially designed according to the material features and process requirements.
Picture of experimental sample particleApplication
Granulating in pharmaceutical industry
Granulating in food industry
Granulating in other industries
Drying of powder or particle wet materials
| Item | Unit | Type | ||||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | |||
| Raw material container | Volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 | 3000 |
| Diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 | |
| Production capacity | Min | kg | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 | 800 |
| Max | kg | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | 1200 | |
| Fan | Air quantity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 | 13670 |
| Air pressure | mmH2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | 1400 | |
| Power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 30 | 37 | 45 | 90 | |
| Steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | 750 | |
| Compressed air consumption | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 3.0 | 4.0 | |
| Main machine weight | kg | 500 | 700 | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2500 | 3500 | |
| Steam pressure | Mpa | 0.1-0.4 | ||||||||||
| Temperature | ℃ | Room temperature around-120℃, adjustable | ||||||||||
| Working time | min | Vary from 45-90 according to material features. | ||||||||||
| Material yield | % | ≥99 | ||||||||||
| Noise | dB(A) | The fan and main machine are installed separately so the noise≤75dB(A) | ||||||||||
| Outline dimension of the main machine | M | 1.0×0.6 ×2.1 | 1.2×0.7 ×2.3 | 1.25×0.9 ×2.5 | 1.6×1.1 ×2.5 | 1.85×1.4 ×3 | 2.2×1.65 ×3.3 | 2.34×1.7 ×3.8 | 2.8×2.0 ×4.5 | 3×2.25 ×5.0 | 4×2.8×7.2 | |
The granule produced by this granulator with fluid bed is easily dissolved with rapid speed. This granulator has multiple functions of mixing, granulating and drying.
This equipment adopts pressure relief hole which can ensure the safety of the equipment and operators. This is an anti-explosion granulator.
