High-Pressure Water Injection Pump

Request a Quote

Website: http://groutpump-en.com/high-pressure-water-injection-pump-2-4.html

JN315 Series

Reciprocating plunger pumps for industrial cleaning, ship hull descaling and water injection

Max. pressure: Standard 65 MPa; ultra-high-pressure version up to 120 MPa
Max. flow: 1230 L/min

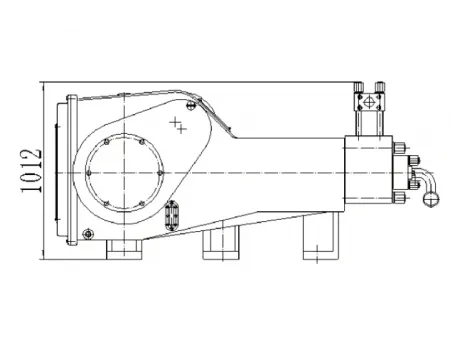

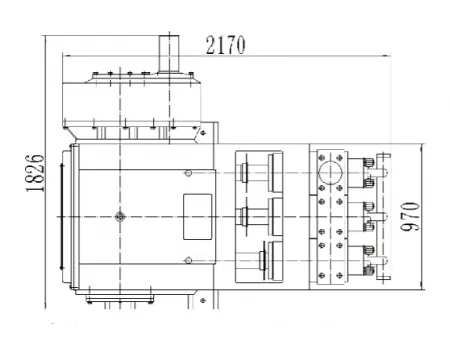

Dimensions: 2170×1826×1012 mm

JN315 ultra-high-pressure water injection pump is a new-generation product developed based on over thirty years of experience in manufacturing high-pressure plunger pumps. It fully incorporates extensive user feedback and advanced international design concepts, combined with Juneng’s expertise in industrial processing, to deliver a carefully engineered solution for demanding applications.

The pump adopts a low-speed, long-stroke design philosophy and features comprehensive optimization of valve assemblies and plunger sealing structures. Both the power end and the hydraulic end have been innovatively upgraded, significantly enhancing the pump’s ability to convey abrasive media. These improvements greatly extend seal service life, reduce maintenance frequency, and lower labor intensity, supporting sustained improvements in operational efficiency.

Application Scenarios

The ultra-high-pressure water injection pump is suitable for:

Jet cleaning
Metal cutting
Ship cleaning
Rust removal
Cleaning of condensers, heat exchangers, and reactors in chemical plants, sugar plants, and power plants

Specifications

6-Pole Motor Version — 1400/335

Pump Speed (min^-1)		81		Plunger Stroke (mm)						150
Theoretical Flow L/min	Motor Power for 6-Pole (kW)									Plunger Dia. (mm)
	200	220	250		280	315	335	375	400
	Rated Pressure (MPa)
160	65	65	65		65	65	65	65	65	ø75
183	60	65	65		65	65	65	65	65	ø80
206	53	58	65		65	65	65	65	65	ø85
231	42	52	59		65	65	65	65	65	ø90
258	38	46	53		59	65	65	65	65	ø95
286	34	42	48		53	60	64	65	65	ø100
315	31	38	43		48	55	58	65	65	ø105

Note: Max. working pressure of JN315 high-pressure water injection pump is limited to 65 MPa.

Standard Motor Version — 1400/335

Pump Speed (min^-1)			122			Plunger Stroke (mm)					150
Theoretical Flow L/min	Motor Power (kW)										Plunger Dia. (mm)
	200	220		250	280		315	335	375	400
	Rated Pressure (MPa)
241	45	50		57	64		65	65	65	65	ø75
275	40	44		50	56		63	65	65	65	ø80
310	35	39		44	46		55	59	65	65	ø85
348	31	34		39	41		49	53	59	65	ø90
388	28	31		35	37		44	47	53	56	ø95
430	25	28		32	33		40	42	48	51	ø100
475	23	25		29	30		36	38	43	46	ø105

Note: Max. working pressure of JN315 high-pressure water injection pump is limited to 65 MPa.

4-Pole Motor Version — 1250/335

Pump Speed (min^-1)		136		Plunger Stroke (mm)					150
Theoretical Flow		Motor Power for 4-Pole (kW)								Plunger Dia. (mm)
Theoretical Flow		200	220	250	280	315	335	375	400
L/min	m³/h	Rated Pressure (MPa)
268	16	39	42	48	54	61	68	77	82	ø75
306	18	34	37	42	47	53	60	67	72	ø80
345	20	30	33	38	42	47	53	60	63	ø85
388	23	27	30	33	37.5	42	47	53	56	ø90
432	26	24	26	30	34	38	42	47	51	ø95
480	28	22	24	27	30	34	38	43	46	ø100
530	32	20	22	24	27	31	34	39	41	ø105
581	35	18	20	22	25	28	31	35	38	ø110
635	38	16	18	20	23	26	29	32	34	ø115
691	41	15	16	19	21	24	26	30	32	ø120
750	45	14	15	17	19	22	24	27	29	ø125
811	48	13	14	16	18	20	22	25	27	ø130
875	52	12	13	15	16.6	19	21	23	25	ø135
941	56	11	12	14	15.5	17	19	22	23	ø140
1010	60.6	10	11.3	13	14.4	16	18	20	21	ø145
1080	65		10.6	12	13.5	15	17	19	20	ø150
1154	69.2		10	11	12.6	14	16	18	19	ø155
1230	73.8			10	12	13	15	16	18	ø160

Note: JN315 high-pressure water injection pumps with pressure below 10 MPa are no longer listed.

4-Pole Motor Version — 1250/400

Pump Speed (min^-1)		163		Plunger Stroke (mm)		150
Theoretical Flow		Motor Power for 4-Pole (kW)					Plunger Dia. (mm)
		250	280	315	355	400
L/min	m³/h	Rated Pressure (MPa)
174	10.4	75	83	94	106	120	ø55
207	12.4	63	70	79	89	100	ø60
243	14.6	53	60	67	76	85	ø65
