JN200 Series

High-pressure triplex plunger pumps for industrial cleaning and water injection

JN200 series high-pressure water injection pump is a triplex plunger pump featuring a compact structure, small footprint, and high efficiency. The power end adopts forced lubrication, with the high-speed shaft and crankshaft driven by herringbone gears to ensure smooth and reliable transmission. This design reduces friction, enhances lubrication performance, lowers noise, and maintains a low power-end operating temperature, making it suitable for long-term continuous operation. Additionally, the hydraulic end of this pump is easy to disassemble, simplifying maintenance.

Application Scenarios

The water injection pump is suitable for various high-pressure cleaning applications, such as:

Ultra-high-pressure water jet cleaning
Metal cutting
Ship cleaning
Rust removal
Cleaning of heat exchangers, condensers, and reactors in chemical plants, sugar plants, and power plants

The pump can also be used to convey water, emulsions, or other water-like liquids.

Specifications

High-Pressure Water Injection Pump JN200K (45 MPa)

Max. pressure: 45 MPa
Max. flow: 585 L/min

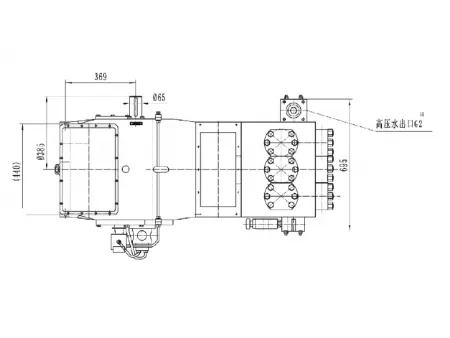

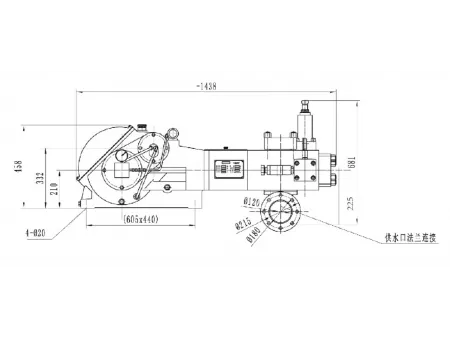

Dimensions: 1438×695×681 mm

High-Pressure Triplex Plunger Pump (Driven by Electric Motor)

Pump Speed: 366 min^-1; Transmission Ratio: i = 4.04

Plunger Dia. (mm)	Input Speed (r/min) 1480		Pump Speed	366	Transmission Ratio	i=4.04
	Input Speed (r/min) 1480		Max. Pressure (MPa) under Motor Power below
	Theoretical Flow		110 kW	132 kW	160 kW	200 kW
	L/min	m³/h	110 kW	132 kW	160 kW	200 kW
45	209	12.54	27	33	40	45
50	258	15.48	22	27	33	36
55	312	18.72	18	22	27	30
60	372	22.32	15	19	23	25
65	436	26.16	13	16	19	21
70	506	30.36	11	13	17	18

High-Pressure Triplex Plunger Pump (Driven by Diesel Engine)

Pump Speed: 389 min^-1; Transmission Ratio: i = 4.619

Plunger Dia. (mm)	Input Speed (r/min) 1800		Pump Speed	389	Transmission Ratio	i=4.619
	Input Speed (r/min) 1800		Max. Pressure (MPa) under Motor Power below
	Theoretical Flow		110 kW	132 kW	160 kW	200 kW
	L/min	m³/h	110 kW	132 kW	160 kW	200 kW
45	222	13.32	26	32	38	44
50	274	16.44	21	26	31	35
55	332	19.92	17	21	25	29
60	395	23.7	14	18	21	24
65	464	27.84	12	15	18	21
70	538	32.28	10	13	15	18

High-Pressure Triplex Plunger Pump (Driven by Electric Motor)

Pump Speed: 320 min^-1; Transmission Ratio: i = 4.619

Plunger Dia. (mm)	Input Speed (r/min) 1480		Pump Speed	320	Transmission Ratio	i=4.619
	Input Speed (r/min) 1480		Max. Pressure (MPa) under Motor Power below
	Theoretical Flow		110 kW	132 kW	160 kW
	L/min	m³/h	110 kW	132 kW	160 kW
45	183	10.98	32	38	44
50	226	13.56	25	31	35
55	273	16.38	21	25	29
60	325	19.5	18	21	24
65	382	22.92	15	18	21
70	443	26.58	13	16	18

High-Pressure Triplex Plunger Pump (Driven by Diesel Engine)

Pump Speed: 445 min^-1; Transmission Ratio: i = 4.04

Plunger Dia. (mm)	Input Speed (r/min) 1800		Pump Speed	445	Transmission Ratio	i=4.04
	Input Speed (r/min) 1800		Max. Pressure (MPa) under Motor Power below
	Theoretical Flow		110 kW	132 kW	160 kW	200 kW
	L/min	m³/h	110 kW	132 kW	160 kW	200 kW
45	245	14.7	23	28	34	42
50	300	18	19	23	28	34
55	360	21.6	16	19	23	28
60	430	25.8	13	16	19	24
65	500	30	11	14	16	21
70	585	35.1	10	12	14	17

Recommendation: When selecting a diesel engine, consider fuel economy by calculating the required power as 1.25 times the value listed in the table above.

High-Pressure Water Injection Pump JN200Q (150 MPa)

Max. pressure: 150 MPa
Max. flow: 119 L/min
Dimensions: 1416×755×508 mm

JN200Q High-Pressure Triplex Plunger Pump Parameter Table
Plunger Dia. (mm)	Input Speed (r/min) 1480		Pump Speed	366	Transmission Ratio	i=4.04
	Input Speed (r/min) 1480		Max. Pressure (MPa) under Motor Power below
	Theoretical Flow		90 kW	110 kW	132 kW	160 kW
	L/min	m³/h	90 kW	110 kW	132 kW	160 kW
20	40	2.4	115	140	150
22	50	3	95	120	140	150
24	60	3.6	80	100	115	140
26	70	4.2	70	85	100	120
28	80	4.8	56	70	85	100
30	93	5.58	50	60	70	90
34	119	7.14	38	46	57	70

High-Pressure Water Injection Pump JN200 (280 MPa)

Max. pressure: 280 MPa
Max. flow: 380 L/min
Dimensions: 1420×755×508 mm

JN200 High-Pressure Triplex Plunger Pump (Driven by Electric Motor) Table 1

Plunger Dia. (mm)	Input Speed (r/min) 1480		Pump Speed (r/min)	366	Transmission Ratio	i=4.04
	Input Speed (r/min) 1480		Max. Pressure (MPa) under Motor Power below
	Theoretical Flow		110 kW	132 kW	160 kW	200 kW
	L/min	m³/h	110 kW	132 kW	160 kW	200 kW
17.46	31	1.86	190	220	260	280
20.64	44	2.64	132	160	180	210
22.23	51	3.06	115	140	160	180
24	59	3.54	100	120	140	150
26	70	4.2	80	100	120	130
28	81	4.86	70	90	100	115
30	93	5.58	62	80	87	100
32	105	6.3	55	70	78	85
34	119	7.14	49	60	68	75
36	134	8.04	44	52	60	68
38	149	8.94	40	48	55	61
40	165	9.9	35	42	50	55
42	182	10.92	32	38	45	50
45	209	12.54	28	35	39	43
48	238	14.28	24	31	34	38
50	258	15.48	22	28	31	35
55	312	18.72	18	23	26	28

JN200 High-Pressure Triplex Plunger Pump (Driven by Diesel Engine) Table 2

Plunger Dia. (mm)	Input Speed (r/min) 1800		Pump Speed (r/min)	389	Transmission Ratio	i=4.619
	Input Speed (r/min) 1800		Max. Pressure (MPa) under Motor Power below
	Nominal Flow Rate		110 kW	132 kW	160 kW	200 kW
	L/min	m³/h	110 kW	132 kW	160 kW	200 kW
17.46	33	1.98	175	220	250	280
20.64	46	2.76	125	160	180	200
22.23	54	3.24	108	135	150	180
24	63	3.78	92	116	130	150
26	74	4.44	80	98	110	130
28	86	5.16	68	85	95	110
30	98	5.88	60	74	85	98
32	112	6.72	52	65	72	85
34	127	7.62	45	57	64	75
36	142	8.52	40	51	58	68
38	158	9.48	36	46	52	61
40	175	10.5	33	41	46	55
42	193	11.58	30	37	42	50
45	222	13.32	26	32	37	43
48	253	15.18	23	28	32	38
50	274	16.44	21	26	30	35
55	332	19.92	17	22	25	29

JN200 High-Pressure Triplex Plunger Pump (Driven by Electric Motor) Table 3

Plunger Dia. (mm)	Input Speed (r/min) 1480		Pump Speed (r/min)	320	Transmission Ratio	i=4.619
	Input Speed (r/min) 1480		Max. Pressure (MPa) under Motor Power below
	Nominal Flow Rate		90 kW	110 kW	132 kW	160 kW
	L/min	m³/h	90 kW	110 kW	132 kW	160 kW
17.46	27	1.62	180	210	250	280
20.64	38	2.28	130	150	180	205
22.23	44	2.64	110	130	155	180
24	52	3.12	95	110	140	152
26	61	3.66	82	92	120	130
28	70	4.2	71	82	100	112
30	81	4.86	61	71	90	98
32	92	5.52	52	62	80	86
34	104	6.24	47	54	70	76
36	117	7.02	42	48	60	68
38	130	7.8	38	43	55	60
40	144	8.64	33	40	50	55
42	159	9.54	30	36	45	50
45	183	10.98	27	31	40	43
48	208	12.48	24	27	35	38
50	226	13.56	22	25	32	35
55	273	16.38	18	21	26	29

JN200 High-Pressure Triplex Plunger Pump (Driven by Diesel Engine) Table 4

Plunger Dia. (mm)	Input Speed (r/min) 1800		Pump Speed (r/min)	445	Transmission Ratio	i=4.04
	Input Speed (r/min) 1800		Max. Pressure (MPa) under Motor Power below
	Nominal Flow Rate		110 kW	132 kW	160 kW	200 kW
	L/min	m³/h	110 kW	132 kW	160 kW	200 kW
17.46	38	2.28	150	190	220	250
20.64	53	3.18	108	135	155	180
22.23	62	3.72	93	118	130	155
24	72	4.32	80	100	115	130
26	85	5.1	68	85	98	110
28	98	5.88	58	74	85	98
30	113	6.78	51	64	74	85
32	128	7.68	45	57	64	75
34	145	8.7	40	50	56	65
36	162	9.72	35	45	50	58
38	181	10.86	31	40	45	52
40	201	12.06	28	36	41	47
42	221	13.26	26	33	37	43
45	254	15.24	22	28	32	37
48	289	17.34	20	25	28	33
50	314	18.84	18	22	26	30
55	380	22.8	15	19	22	25

Recommendation: When selecting a diesel engine, consider fuel economy by calculating the required power as 1.25 times the value listed in the table above.
Dimensions: 1420×755×508 mm
