Horizontal Premade Pouch Fill & Seal Machine
Request a Quote

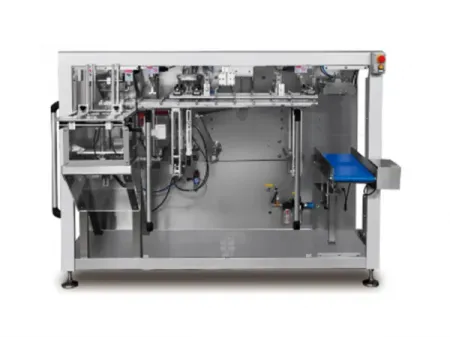

The horizontal premade pouch fill and seal machine is a packaging machine featuring a linear structure and intelligent control system, enabling automatic pre-made pouch packaging compatible with a variety of materials and pouch types.

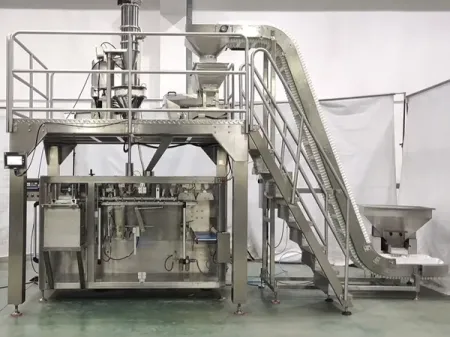

Horizontal Premade Pouch Packaging Machine for Granules
- ModelAPHPM-210-G
- Pouch Size RangeWidth: 100-210mm
Height: 150-380mm - Packing Speed25-50 pouches/min
- Air Consumption100L/min
- Power Supply3Ph/380V, 50/60HZ
- Total Power3kW
- Overall DimensionsL2380×W1780×H1500mm
Horizontal Premade Pouch Packaging Machine for Powders
- ModelAPHPM-210-P
- Pouch Size RangeWidth: 100-210mm
Height: 150-380mm - Packing Speed25-50 pouches/min
- Air Consumption100L/min
- Power Supply3Ph/380V, 50/60HZ
- Total Power3kW
- Overall DimensionsL2380×W1780×H1500mm
Horizontal Premade Pouch Packaging Machine for Liquids & Pastes
- ModelAPHPM-210-L
- Pouch Size RangeWidth: 100-210mm
Height: 150-380mm - Packing Speed25-50 pouches/min
- Air Consumption100L/min
- Power Supply3Ph/380V, 50/60HZ
- Total Power3kW
- Overall DimensionsL2380×W1780×H1500mm
Features
- Linear design, compact structure, easy to operate, and automated. The entire packaging process is fully automatic, requiring no manual intervention
- Control system is equipped with a Panasonic control system and KINCO touchscreen, offering stable performance and a user-friendly interface. Operators can manage the production process, including packaging speed, function adjustments, automatic fault detection, and feedback
- The filling hopper automatically extends into the pouch during filling, preventing liquid spillage and ensuring a clean product appearance
- Filling and sealing occur when a bag is present, preventing errors or material waste
- The device is powered by a cam-driven main motor, providing stable operation, longer service life, and reduced instability compared to cylinder-driven systems

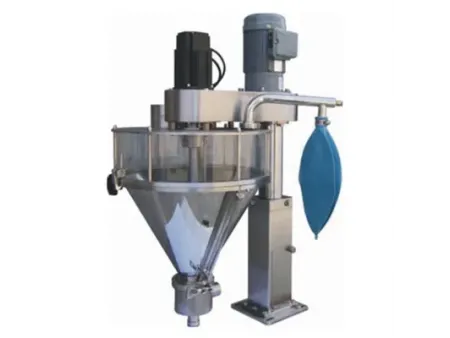

- Filling devices can be selected based on the nature of the material
- The coding station allows the pouch to be lowered for marking, increasing the printing area
- The machine frame is made of 304 stainless steel, which is compliant with GMP standards
- Sealing temperature is automatically controlled
- Major pneumatic parts are sourced from Taiwan’s Airtac brand, safeguarding long service life and easier maintenance
For premium spice brands, how effective is a horizontal premade pouch fill-and-seal machine in elevating shelf presence?
For premium spice brands, how effective is a horizontal premade pouch fill-and-seal machine in elevating shelf presence?
Premade pouches feature a refined appearance, helping to enhance the product presentation and visual appeal of spice brands.
How applicable is a horizontal premade pouch fill-and-seal machine for pet food companies?
How applicable is a horizontal premade pouch fill-and-seal machine for pet food companies?
The horizontal structure operates smoothly and is suitable for the automated packaging of granular pet food products.
