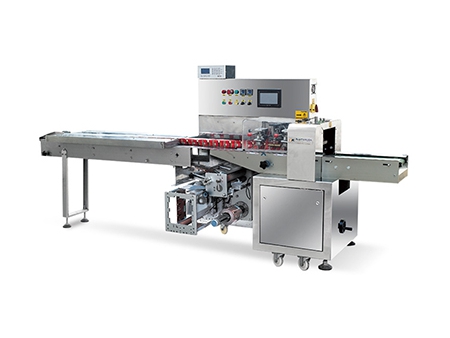

Bottom Reel Horizontal Flow Wrapper
Request a Quote

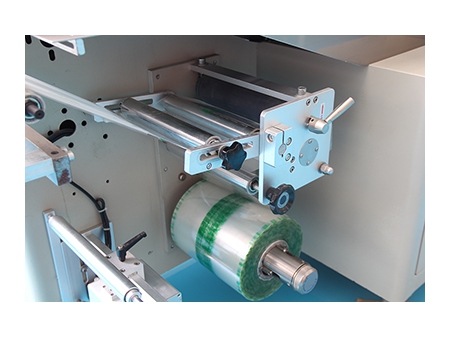

The horizontal flow wrapper features a bottom film feeding mode, making it applicable for packaging loose materials, including disposable tableware, cotton swabs, hardware fittings, and more.
- Bag format: pillow bag. A punching hole or gusset is optional.
- Application: various soft products, strips or bulk goods like towel, tissue, sausage, popsicles, soft sweets, cookies, fruits and more.
- Packaging film: various kinds of films applicable.
Features
- The double frequency converter control helps users save time and minimize machine operator errors. Once parameters for the bag length are saved, the system will perform a precise film positioning and cutting according to set parameters.
- HMI facilitates parameters setting and adjustment.
- Failure self-diagnosis function clearly shows the failure reasons.
- Highly sensitive color code photo eye mechanism precisely tracks and controls the cutting and sealing position.

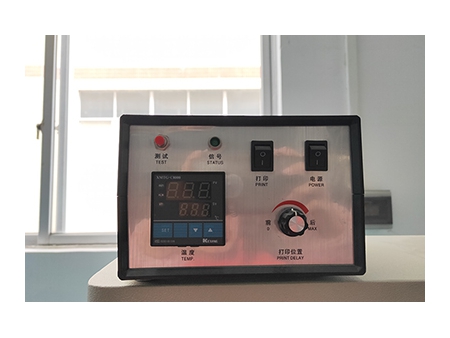

- Independent PID temperature control is suitable for the usage of different packaging film materials.
- Positioned stop without film sticking into the cutting knife, reducing film waste.
- Reliable and concise drive system eases maintenance.
- Complete software control facilitates function adjustment and technology upgrade for quickly responding to the changing demands of the market.
Specifications
| Model | SK-W250X | SK-W350X | SK-W450X | SK-W600X |
| Bag width | 30-110mm | 50-160mm | 50-180mm | 90-220mm |
| Bag length | 60-190 or 120-280mm | 65-190 or 120-280mm | 180-450mm | 180-450mm |
| Max. product height | 40mm | 40mm | 80mm | 80mm |
| Film roll diameter | 320mm | 320mm | 320mm | 320mm |
| Packaging speed | 40-230bags/min | 40-230bags/min | 30-120bags/min | 30-120bags/min |
| Machine dimension | L3920 * W670 * H1320mm | L4020 * W720 * H1320mm | L4020 * W800 * H1320mm | L4020 * W880 * H1320mm |
| Machine weight | About 600kg | About 680kg | About 750kg | About 800kg |
If you are interested in our bottom reel horizontal flow wrapper, please feel free to contact us!
