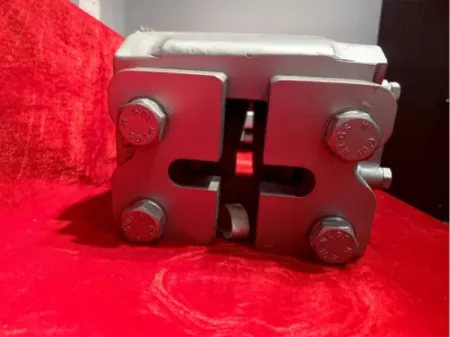

Hydraulic Disc Brake
Request a Quote
FY90B
FY90B Hydraulic Disc Brake Technical Specifications
| Model | FY90B |
| Caliper Material | High-strength Ductile Iron |
| Brake Type | Normally Open, Hydraulic Brake |
| Pistons & Bore(mm) | 6×90 |
| Brake System Pressure (MPa) | 10-20(MPa) |
| Friction Coefficient | 0.35 |
| Brake Disc Thickness(mm) | 25.4 |
| Brake Disc Diameter(mm) | 889-1168 |
| Installation | 3 o’clock or 9 o’clock position |
| Hydraulic Medium | Mineral Oil or Synthetic Brake Fluid |
Note: Customized services and engineering support are available when the hydraulic medium or pressure requirements change.
