Integrated Hydraulic Rock Drill Splitter
Integrated Hydraulic Rock Drill & Splitter

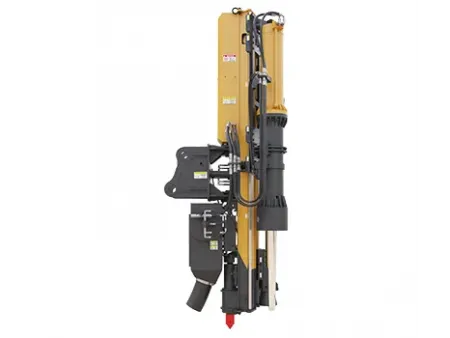

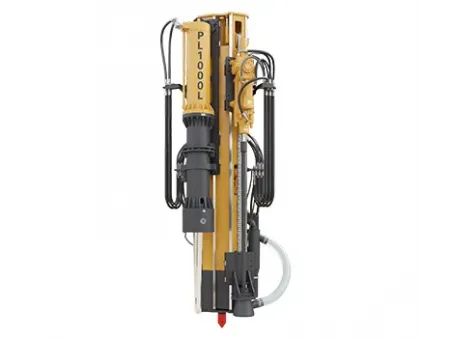

PL-1000L integrated hydraulic rock drill splitter can be installed on 25 to 38-ton class excavators and is designed for various hard rock excavation projects. It enables integrated drilling and splitting operations in ultra-hard rock formations.
Equipped with a 22kW hydraulic rock drill, the excavator drill splitter first executes precision drilling. This is followed by the P240 two-stage pressure-boosted splitter, which performs in-hole splitting to deliver highly efficient, non-explosive rock breaking.
Enables continuous 360° rotation for comprehensive horizontal operation.
Engineered for high-efficiency vertical drilling/splitting
Engineered for operations below horizontal grade
Overall specifications
| Total Weight | 4T |
| Overall Length | 4200mm |
| Overall Width | 1680mm |
Rock Drill Parameters
| Rated Power | 22KW |
| Drill Hole Diameter | Ф115mm |
| Drill Hole Depth | 1600mm |
| Drilling Speed | 1m/min |
| Operating Noise | Compliant with GB19872-2005 |
Splitting Machine Parameters
| Splitting Depth | 1000mm |
| Max. Splitting Force | 12000T |
| Rotation Angle | 120° |
Feed Beam
| Max. Drill Thrust Force | 40KN |
| Max. Splitter Retraction Force | 80KN |
Swing Unit
| Swing Force | 80KN |
| Swing Speed | 1rpm |
Air Compressor
| Air Displacement | 4.5m³/min |
| Discharge Pressure | 5-8bar |
Product Brochure
Download our catalog for details
Cycle time per hole (Average)
Drilling: Approx. 2 min
Splitting: Approx. 40s
Positioning & swing: Approx. 50s
Theoretical yield per hole:
2.5m (Spacing)×1.2m (Burden)×1m (Splitting depth)
- Utilizes imported high-grade wedge sets and supports multi-angle drilling to overcome complex challenges in slopes, excavation faces, and foundation pits.
- Powered by Swedish rock drilling technology and a patented drill frame. The simplified, robust structure ensures precise positioning and an extended service life.
- Crafted with an Italian-engineered hydraulic intensification system. This rock drill splitter minimizes counterweight requirements while delivering stable, high-performance splitting.
- Equipped with an industrial wireless remote control system, allowing for seamless single-operator management and enhanced operational safety.
- A specialized solution for hard rock quarrying, combining multi-angle capability with high-efficiency output.
- Features two-stage splitting cylinders with double-intensified pressure, easily fracturing ultra-hard rock to maximize splitting efficiency and total yield (output).
- Extraction of granite, marble, sandstone, limestone, and other natural stones.
- Extraction of metallic and non-metallic ores, coal gangue, and precious stones such as jade and nephrite.
- Efficient secondary fragmentation of massive raw blocks exceeding several thousand cubic meters.
- Trimming of blocks under 1m³, removal of waste rock, clearing of confined corners, and site leveling or grading operations.
