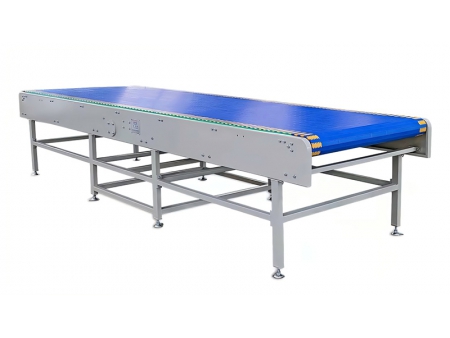

Modular belt conveyor is a core conveying unit in automated carton production lines. It is specifically designed for the efficient transportation of corrugated boards, semi-finished boards, and finished cartons. Modular belt conveyor is widely used in processes such as material preparation, printing, die-cutting, palletizing, and more. In addition, it can be seamlessly integrated with automated production lines to improve overall efficiency significantly.

The conveyor belt features a modular structural design that balances durability and flexibility, enabling it to adapt to various workshop environments and production requirements.

• Accurate and Stable Conveying: Equipped with a variable-frequency drive motor and anti-deviation guide roller system, ensuring smooth, jam-free board conveying and stable operation under high-speed production conditions.
• Intelligent Control Integration: Adopting PLC control combined with a touch-screen interface to support speed adjustment, fault alarm functions, and remote monitoring.
• High-Strength and Durable Structure: Uses a high-strength POM modular belt with a load capacity of up to 2000 kg/m², maintaining structural stability without deformation during long-term operation.
• Safe and Energy-Efficient Design: Features multi-level emergency-stop protection and infrared sensors, paired with low-power motors to improve safety and energy efficiency.

• Conveying speed: 18–60 m/min (adjustable)
• Product width: 500–5000 mm (customizable)
• Motor power: 1.5 kW–5.5 kW (variable-frequency motor)
• Power supply: 380 V/50 Hz (customizable)
• Frame: Painted steel frame with high load-bearing capacity and anti-deformation
