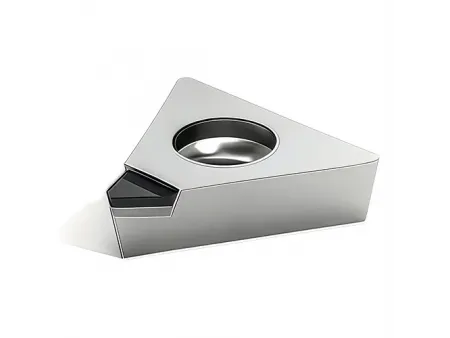

PCD Tools, TCGW

Request a Quote

Website: http://winicetech-en.com/pcd-tools-tcgw-2-3-3.html

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)

Technical Specifications

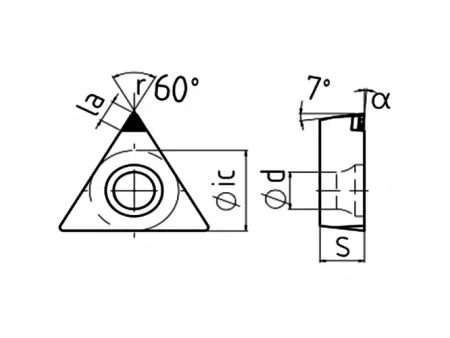

ISO Code	ANSI Code	Tips	Edge Length	Hole Diameter	Thickness	Rake	Nose Radius	Tip Length
			ic	Ød	s	α	r	la
TCGW080202	TCGW(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	0°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	5°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	1N	4.76	2.4	2.38	10°	0.2	2.5
TCGW080204	TCGW(1.5)(1.5)1	1N	4.76	2.4	2.38	0°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	1N	4.76	2.4	2.38	5°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	1N	4.76	2.4	2.38	10°	0.4	2.5
TCGW080208	TCGW(1.5)(1.5)2	1N	4.76	2.4	2.38	0°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	1N	4.76	2.4	2.38	5°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	1N	4.76	2.4	2.38	10°	0.8	2.5
TCGW110302	TCGW22(0.5)	1N	6.35	2.8	3.18	0°	0.2	2.5
TCGT110302	TCGT22(0.5)	1N	6.35	2.8	3.18	5°	0.2	2.5
TCGT110302	TCGT22(0.5)	1N	6.35	2.8	3.18	10°	0.2	2.5
TCGW110304	TCGW221	1N	6.35	2.8	3.18	0°	0.4	2.5
TCGT110304	TCGT221	1N	6.35	2.8	3.18	5°	0.4	2.5
TCGT110304	TCGT221	1N	6.35	2.8	3.18	10°	0.4	2.5
TCGW110308	TCGW222	1N	6.35	2.8	3.18	0°	0.8	2.5
TCGT110308	TCGT222	1N	6.35	2.8	3.18	5°	0.8	2.5
TCGT110308	TCGT222	1N	6.35	2.8	3.18	10°	0.8	2.5
TCGW160402	TCGW33(0.5)	1N	9.525	4.4	4.76	0°	0.2	2.5
TCGT160402	TCGT33(0.5)	1N	9.525	4.4	4.76	5°	0.2	2.5
TCGT160402	TCGT33(0.5)	1N	9.525	4.4	4.76	10°	0.2	2.5
TCGW160404	TCGW331	1N	9.525	4.4	4.76	0°	0.4	2.5
TCGT160404	TCGT331	1N	9.525	4.4	4.76	5°	0.4	2.5
TCGT160404	TCGT331	1N	9.525	4.4	4.76	10°	0.4	2.5
TCGW160408	TCGW332	1N	9.525	4.4	4.76	0°	0.8	2.5
TCGT160408	TCGT332	1N	9.525	4.4	4.76	5°	0.8	2.5
TCGT160408	TCGT332	1N	9.525	4.4	4.76	10°	0.8	2.5
TCGW080202	TCGW(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	0°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	5°	0.2	2.5
TCGT080202	TCGT(1.5)(1.5)(0.5)	3N	4.76	2.4	2.38	10°	0.2	2.5
TCGW080204	TCGW(1.5)(1.5)1	3N	4.76	2.4	2.38	0°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	3N	4.76	2.4	2.38	5°	0.4	2.5
TCGT080204	TCGT(1.5)(1.5)1	3N	4.76	2.4	2.38	10°	0.4	2.5
TCGW080208	TCGW(1.5)(1.5)2	3N	4.76	2.4	2.38	0°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	3N	4.76	2.4	2.38	5°	0.8	2.5
TCGT080208	TCGT(1.5)(1.5)2	3N	4.76	2.4	2.38	10°	0.8	2.5
TCGW110302	TCGW22(0.5)	3N	6.35	2.8	3.18	0°	0.2	2.5
TCGT110302	TCGT22(0.5)	3N	6.35	2.8	3.18	5°	0.2	2.5
TCGT110302	TCGT22(0.5)	3N	6.35	2.8	3.18	10°	0.2	2.5
TCGW110304	TCGW221	3N	6.35	2.8	3.18	0°	0.4	2.5
TCGT110304	TCGT221	3N	6.35	2.8	3.18	5°	0.4	2.5
TCGT110304	TCGT221	3N	6.35	2.8	3.18	10°	0.4	2.5
TCGW110308	TCGW222	3N	6.35	2.8	3.18	0°	0.8	2.5
TCGT110308	TCGT222	3N	6.35	2.8	3.18	5°	0.8	2.5
TCGT110308	TCGT222	3N	6.35	2.8	3.18	10°	0.8	2.5
TCGW160402	TCGW33(0.5)	3N	9.525	4.4	4.76	0°	0.2	2.5
TCGT160402	TCGT33(0.5)	3N	9.525	4.4	4.76	5°	0.2	2.5
TCGT160402	TCGT33(0.5)	3N	9.525	4.4	4.76	10°	0.2	2.5
TCGW160404	TCGW331	3N	9.525	4.4	4.76	0°	0.4	2.5
TCGT160404	TCGT331	3N	9.525	4.4	4.76	5°	0.4	2.5
TCGT160404	TCGT331	3N	9.525	4.4	4.76	10°	0.4	2.5
TCGW160408	TCGW332	3N	9.525	4.4	4.76	0°	0.8	2.5
TCGT160408	TCGT332	3N	9.525	4.4	4.76	5°	0.8	2.5
TCGT160408	TCGT332	3N	9.525	4.4	4.76	10°	0.8	2.5
