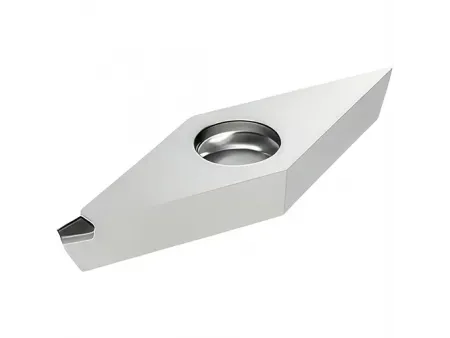

PCD Tools, VCGW

Request a Quote

Website: http://winicetech-en.com/pcd-tools-vcgw-2-3-6.html

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)

Technical Specifications

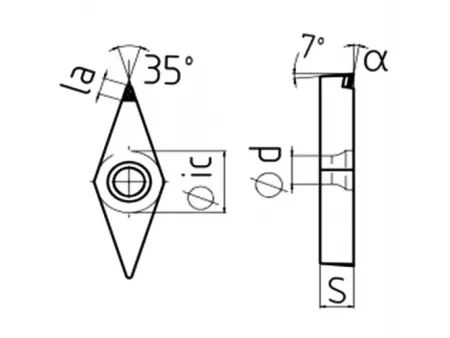

ISO Code	ANSI Code	Tips	Edge Length	Hole Diameter	Thickness	Rake	Nose Radius	Tip Length
			ic	Ød	s	α	r	la
VCGW110302	VCGW22(0.5)	1N	6.35	2.8	3.18	0°	0.2	2.5
VCGT110302	VCGT22(0.5)	1N	6.35	2.8	3.18	5°	0.2	2.5
VCGT110302	VCGT22(0.5)	1N	6.35	2.8	3.18	10°	0.2	2.5
VCGW110304	VCGW221	1N	6.35	2.8	3.18	0°	0.4	2.5
VCGT110304	VCGT221	1N	6.35	2.8	3.18	5°	0.4	2.5
VCGT110304	VCGT221	1N	6.35	2.8	3.18	10°	0.4	2.5
VCGW110308	VCGW222	1N	6.35	2.8	3.18	0°	0.8	2.5
VCGT110308	VCGT222	1N	6.35	2.8	3.18	5°	0.8	2.5
VCGT110308	VCGT222	1N	6.35	2.8	3.18	10°	0.8	2.5
VCGW110302	VCGW22(0.5)	2N	6.35	2.8	3.18	0°	0.2	2.5
VCGT110302	VCGT22(0.5)	2N	6.35	2.8	3.18	5°	0.2	2.5
VCGT110302	VCGT22(0.5)	2N	6.35	2.8	3.18	10°	0.2	2.5
VCGW110304	VCGW221	2N	6.35	2.8	3.18	0°	0.4	2.5
VCGT110304	VCGT221	2N	6.35	2.8	3.18	5°	0.4	2.5
VCGT110304	VCGT221	2N	6.35	2.8	3.18	10°	0.4	2.5
VCGW110308	VCGW222	2N	6.35	2.8	3.18	0°	0.8	2.5
VCGT110308	VCGT222	2N	6.35	2.8	3.18	5°	0.8	2.5
VCGT110308	VCGT222	2N	6.35	2.8	3.18	10°	0.8	2.5
VCGW160402	VCGW33(0.5)	1N	9.525	4.4	4.76	0°	0.2	2.5
VCGT160402	VCGT33(0.5)	1N	9.525	4.4	4.76	5°	0.2	2.5
VCGT160402	VCGT33(0.5)	1N	9.525	4.4	4.76	10°	0.2	2.5
VCGW160404	VCGW331	1N	9.525	4.4	4.76	0°	0.4	2.5
VCGT160404	VCGT331	1N	9.525	4.4	4.76	5°	0.4	2.5
VCGT160404	VCGT331	1N	9.525	4.4	4.76	10°	0.4	2.5
VCGW160408	VCGW332	1N	9.525	4.4	4.76	0°	0.8	2.5
VCGT160408	VCGT332	1N	9.525	4.4	4.76	5°	0.8	2.5
VCGT160408	VCGT332	1N	9.525	4.4	4.76	10°	0.8	2.5
VCGW160402	VCGW33(0.5)	2N	9.525	4.4	4.76	0°	0.2	2.5
VCGT160402	VCGT33(0.5)	2N	9.525	4.4	4.76	5°	0.2	2.5
VCGT160402	VCGT33(0.5)	2N	9.525	4.4	4.76	10°	0.2	2.5
VCGW160404	VCGW331	2N	9.525	4.4	4.76	0°	0.4	2.5
VCGT160404	VCGT331	2N	9.525	4.4	4.76	5°	0.4	2.5
VCGT160404	VCGT331	2N	9.525	4.4	4.76	10°	0.4	2.5
VCGW160408	VCGW332	2N	9.525	4.4	4.76	0°	0.8	2.5
VCGT160408	VCGT332	2N	9.525	4.4	4.76	5°	0.8	2.5
VCGT160408	VCGT332	2N	9.525	4.4	4.76	10°	0.8	2.5
