174A Non Sparking Valve Wrench

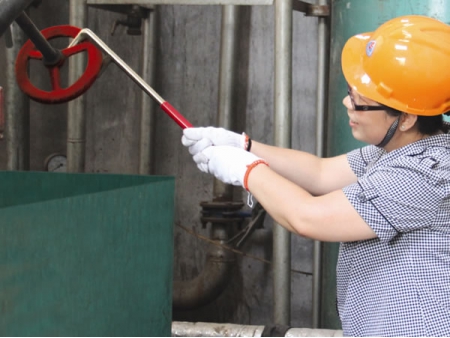

Also known as F-wrench, our 174A non sparking valve wrench is manufactured to meet the QB/T2613.9 standard. Drop-forged structure is also spark-free, which makes the wrench suitable for use in a variety of areas that contain potential flammable or explosive hazards. Its curved head design provides for large contact area between the wrench and the valve, which in turn prevents the head from slipping out of place.
The wrench handle is covered with PVC plastic via a process known as dip coating. Such a design prevents hands slipping off the handle and makes operators exert force easier than before. The wrench has various other desirable features such as great tensile strength, long service life, and stable mechanical performance.

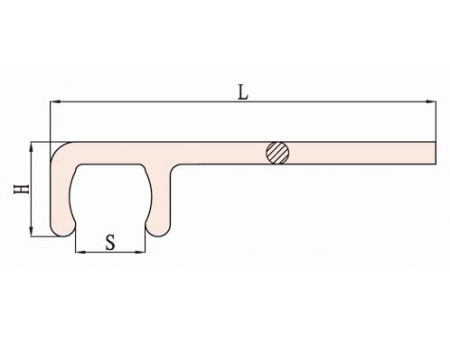

| Model | S mm | L mm | H mm | Be-Cu g | Al-Cu g |
| 30 | 200 | 46 | 265 | 240 | |
| 35 | 250 | 52 | 375 | 340 | |
| 40 | 300 | 54 | 450 | 400 | |
| 45 | 350 | 60 | 585 | 530 | |
| 50 | 400 | 68 | 740 | 670 | |
| 55 | 450 | 74 | 830 | 750 | |
| 60 | 500 | 80 | 1200 | 1100 | |
| 65 | 550 | 83 | 1280 | 1160 | |
| 70 | 600 | 88 | 1380 | 1250 | |
| 75 | 650 | 93.5 | 1650 | 1500 | |
| 80 | 700 | 99.5 | 1870 | 1700 | |
| 85 | 750 | 100 | 2090 | 1900 | |
| 90 | 800 | 107 | 2310 | 2100 | |
| 95 | 900 | 112 | 2980 | 2700 | |
| 100 | 1000 | 117 | 3330 | 3010 |
