136 Non Sparking Combination Wrench Manufacturer

136 Non Sparking Combination Wrench

Request a Quote

View All: http://bestsafetytools.com/product-1-2-10-combination-wrench-en/134158/index.html

The 136 non sparking combination wrench meets the German DIN3113 standard. Its flat metallic handle allows logo to be easily printed on it. Die forged structure makes the wrench suitable for use in a variety of flammable or explosive atmospheres.

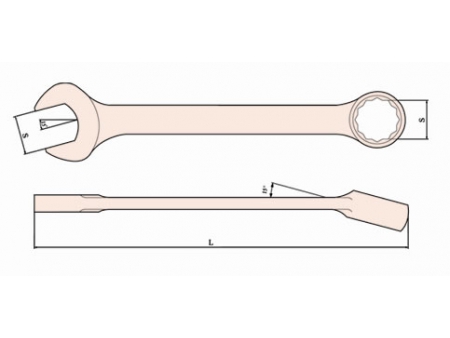

This double ended tool has one end that is like an open-end wrench and the other end like a ring spanner. Both ends fit over the hex or square heads of nuts or bolts of the same size. Those two faces of jaw are displaced at a 15 degree angle to the metallic handle. This provides for easy of operation. This series of wrench has high tensile strength and stable mechanical properties. It is durable and long-lasting.

Model	S mm	L mm	Be-Cu g	Al-Cu g
136-6	6	105	18	16
136-7	7	120	40	40
136-8	8	120	40	40
136-9	9	135	45	42
136-10	10	135	45	42
136-11	11	150	65	60
136-12	12	150	65	60
136-13	13	175	90	82
136-14	14	175	90	82
136-15	15	195	140	125
136-16	16	195	140	125
136-17	17	195	140	125
136-18	18	215	180	165
136-19	19	215	180	165
136-20	20	215	180	165
136-21	21	245	280	260
136-22	22	245	280	260
136-23	23	265	320	290
136-24	24	265	320	290
136-25	25	265	500	455
136-26	26	290	500	455
136-27	27	290	500	455
136-30	30	320	700	635
136-32	32	340	780	710
136-34	34	360	1000	910
136-36	36	360	1000	910
136-38	38	430	1450	1310
136-41	41	430	1420	1190
136-46	46	480	1760	1590
136-50	50	520	2300	1950
136-55	55	560	2640	2500
136-60	60	595	2920	2640
136-65	65	595	3440	3110
136-70	70	630	4130	3730
136-75	75	630	4000	3620
136-80	80	660	5400	4880
136-85	85	660	5320	4800
136-90	90	720	7100	6410
136-95	95	720	7000	6250
136-100	100	780	8950	8100
136-110	110	840	11350	10369
136-120	120	900	12750	11560
