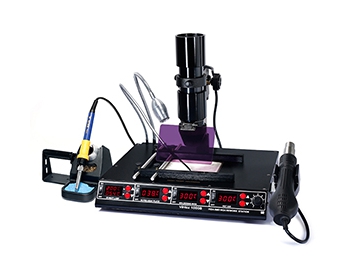

YIHUA-1000A,YIHUA-1000B Infrared BGA Rework Station

YIHUA-1000A,YIHUA-1000B Infrared BGA Rework Station
YIHUA-1000A,YIHUA-1000B Infrared BGA Rework Station
YIHUA-1000A,YIHUA-1000B Infrared BGA Rework Station
Request a Quote
Features
  • Based on the market demand and latest technological design, the YIHUA-1000A, YIHUA-1000B infrared BGA rework station is integrated with the far infrared light, preheater, as well as soldering and hot air desoldering BGA rework stations.
  • It is made with the humanization design. The infrared soldering uses the latest security probe to real-time track the surface temperature of soldering IC, thus to avoid the soldering parts damage caused by high temperature. This equipment offers an extremely good security application.
  • The hot air gun uses Samsung micro control chip PID procedures based on the high-speed 100ms for periodically real-time tracking and correcting the temperature of air gun air inlet and iron tips. The temperature is highly stable.
  • Iron handle of the BGA rework station adopts the high-temperature resistant silicone wire. The silicone wire has no damage within 30 seconds when contacting with the iron tips of 300℃.
  • The equipment comes with the -50 ℃ to 50 ℃temperature compensation function. The infrared light has a 5-80 power adjustment function.
  • Additionally, it has the ℉/℃ conversion function, to meet different customers’ needs.
Parameters
Machine Unit
Input Voltage AC 220V±10% 50Hz
Power 1450W
Constant Temperature of 300 ℃ Power (high speed PID programmable power saving) 600W±10%
Work Environment 0~40℃ Relative humidity< 80%
Storage Temperature -20~80℃ Relative humidity< 80%
Parts
Item Hot air gun Soldering iron
Work Voltage AC 220V±10% 50Hz AC 26V±10% 50Hz
Output Power 650W 75W
Temperature Range 100℃~480℃ 200℃~480℃
Airflow Type Brushless fan ---
Airflow 120L/min ---
Temperature Stability ±1℃ (Static) ±1℃ (Static)
Display Mode Red/ green LED display Red /green LED display
Temperature Correction Method PID Digital program proofreading IPID Digital program proofreading
PID Correction of Temperature Cycle Speed 20ms High speed100ms
Heater Porous ceramic heater Imported large power heater
Iron Tips Impedance to Ground --- < 2ω
Iron Tips Voltage to the Ground --- < 2mv
Infrared lamp parts
  • Work Voltage:AC 220V±10% 50Hz
  • Max. Power: 150W
  • Effective Exposure Area: 30*30mm
  • Display Mode: Red/ green LED display
  • Safety Temperature Sensor: K type Thermocouple
  • Temperature Control Range: 50℃--350℃
Preheating parts
  • Work Voltage:AC 220V±10% 50Hz
  • Max. Power: 600W
  • Effective Exposure Area: 130X130mm
  • Display Mode: Display mode
  • Safety Temperature Sensor: K type Thermocouple
  • Temperature Control Range: 50℃--200℃
