Segmented Chop Saw Wheel

Request a Quote

View All: http://abrasive-cn.com/segmented-chop-saw-wheel.html

Description:

The segmented chop saw wheel is made of a sharp, abrasion resistant, impact resistant, and bend resistant 65 manganese steel. The segmented rim is made of diamond, with a high hardness, long service life and fast cutting speed. It is available in 5 and 7 inch types, though we also offer customization services according to customer needs.

Application:

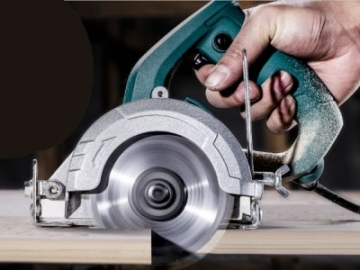

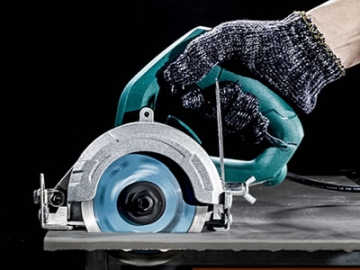

The continuous rim chop saw wheel is suitable for wet cutting, and is primarily used on hand-held or semi-automatic cutting machines, angle grinders and grooving machines. It is often used for cutting non-metallic materials such as glass, jade, agate and crystal lamps, making it a popular choice for glass, jewelry, craft processing and other industries.

Features:

Using advanced heat processing technology, the chop saw wheel has an excellent stability and will not break.
Using high-quality raw materials, it has a low-amplitude and low noise when the blade is working at high speeds.
We offer OEM services for our customers, with options including size, thickness, and number of teeth on the saw wheel. We can also print your logo on the saw wheel.

Specifications:

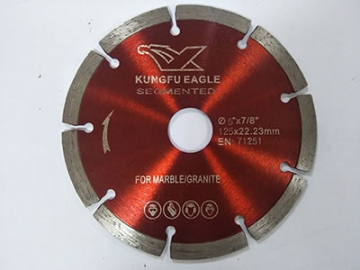

5” segmented chop saw wheel
tooth height 9mm, segmented teeth

Outer Diameter	Thickness	Inner Diameter
125mm	2mm	20mm
125mm	2mm	22.23mm

7” segmented chop saw wheel
tooth height 14mm, segmented teeth

Outer Diameter	Thickness	Inner Diameter
180mm	2.2mm	22.3mm
180mm	2.2mm	25.4mm
