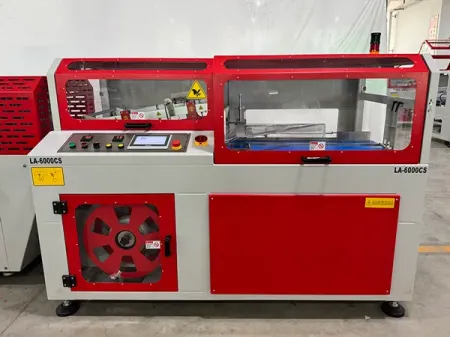

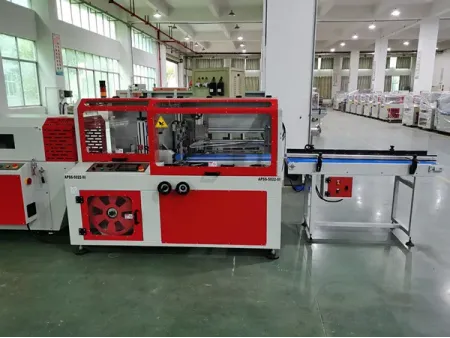

Automatic Shrink Wrapping Machine with Side Sealer
Request a Quote
The automatic side sealing machine is a shrink wrapping machine with continuous temperature-controlled sealing, enabling film length without a preset limit. The servo-driven cross seal, combined with a side-seal structure for center-fold film, allows sealing of various products sizes. Vertical and horizontal sensors detect product position and length to support sealing in different dimensions.
Features
- Temperature-controlled sealing with the unlimited length of products packages up to 60 packs per minute
- Optical sensors detect products automatically while vertical and horizontal sensors are suitable for different product sizes
- Product size changes can be adjusted with a handwheel
- Uses center-fold film to seal the remaining three sides
- Compatible with industrial standard PE and POF heat-seal films
- Includes automatic scrap film collection
- Fully automated operation with optional motor-driven infeed belt and non-powered roller outfeed
Applications
Suitable for large-volume shrink wrapping in industries such as software, food, cosmetics, printing, pharmaceuticals, flooring, ceramics, beverages, hardware, and plastics. Compatible with OPP, POF, PE, and PVC shrink films.
Options
- Transition belt for small or irregular-shaped products
- Printed film registration sensor
- 1.5m infeed belt
- Automatic pusher unit
Specifications
| Model | ||
| Max. Product Width | 450mm | 700mm |
| Sealing Width | 500mm | 750mm |
| Max. Product Height | 220mm | 220mm |
| Max. Film Width | 650/650mm | 850/850mm |
| Power Supply | 220V/1ph 3kW | 220V/1ph 4kW |
| Max. Conveyor Speed | 35M/min | 35M/min |
| Max. Capacity | 60p/min | 35p/min |
| Sealing Type | Servo-driven Horizontal Seal | |
| Machine Dimensions (L×W×H) | 2103×1653×1500 mm | 2402×2153×1510 mm |
| Packing Size (L×W×H) | 2210×1810×1660 mm | 2480×2290×1720 mm |
| Compressed Air / Air Consumption | 6 bar, 10L/min | |
How suitable is a side-sealing shrink solution for cosmetic gift-box manufacturers?
How suitable is a side-sealing shrink solution for cosmetic gift-box manufacturers?
The side-seal shrink structure produces a neat finish of the operation, enhancing the packaging appearance and reaching quality of gift-box products.
