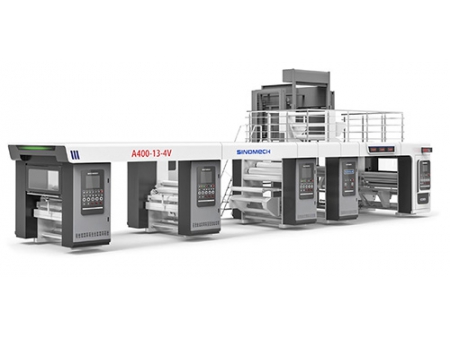

This Solventless laminating machine is widely used for laminating film on film with solvent-less glue for flexible packaging industry. It produces laminated films for producing pouches or other packages, specifically for food package, as it uses solvent free glue for laminating, which is environment friendly.

The machine has the advantages of high automation, simple operation, high production efficiency and low waste rate. This machine is made up of rolling unit, five roller coating unit, preheating unit, compound unit, winding unit, electrical system, EMC system and automatic glue dispensing system.

Features
  • EMC profit control system, with quick analysis and alarm of quality factors, which can analyze historical quality information
  • Mico-gap clearance precise positioning system
  • Coating weight constant monitoring system
  • Material width positioning system
  • SSPI Smart shaft-less plate-cylinder installation
  • FCS Fast cleaning system
  • Solvent-less coating compound, left side is coating, the right side is laminating
Specification
Model
WJ1100
WJ1300
WJ1500
Max width(mm) 1150 1350 1550
The diameter of unwinder(mm) 800 800 800
The diameter of rewinder(mm) 1000 1000 1000
Model Temperature Controller(sets) 3 3 3
Weight(KG) 12600 13500 15500
Overall dimensions(mm) 6000*3200*3000 6000*3400*3000 6000*3600*3000
Mechanical rated speed M/min 400 400 350
