Automatic Tracking Filling & Capping Machine
Request a Quote
APFF-2S Automatic Tracking Filling & Capping Machine
- ModelAPFF-2S
- Number of Filling Heads2
- Filling Range①100-1000ml; ②200-2000ml
(Filling accuracy varies depending on product characteristics.) - Production Speed1200–2400 bottles/hour (Production speed varies depending on different materials. )
- Filling Accuracy±1%
- Air Pressure0.6MPa
- Air Consumption6-7m³/min
- Voltage380V

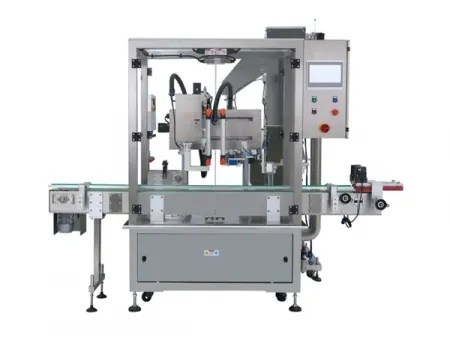

APCM-1S Automatic Tracking Filling & Capping Machine
- ModelAPCM-1S
- Cap Diameter30-100mm
- Production Speed30–45 pcs/min (depending on bottle and cap types)
- Air Pressure0.6MPa
- Air Consumption30 L/min
- Voltage220V / Single Phase
Applications
Suitable for filling low- and medium-viscosity products in chemical, pharmaceutical, agrochemical, cosmetic, and food sectors.
Features
- Servo-driven filling of pistons, including controlled lift of the filling head
- The machine frame is made of 304 stainless steel and liquid-contact components are made of 316 stainless steel
- Sealing rings are selected based on product properties
- Motion-control PLC 10-inch HMI touchscreen
- Filling volume adjustable on the touchscreen
- Storage of 100 product recipes
- Bottle size changeover without replacing parts
- Intelligent no-container-no-fill algorithm
