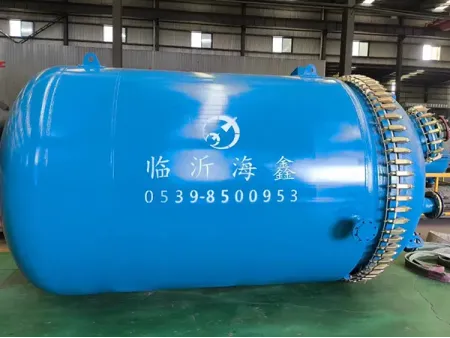

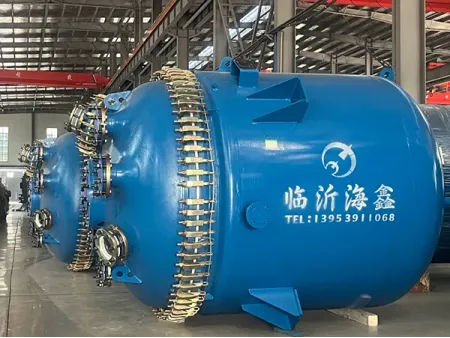

AE-Type Glass-Lined Reactor (Open Type)

The open type glass-lined reactor is mainly composed of a vessel body, vessel cover, agitator, and drive unit. The inner surface is lined with glass enamel to provide reliable corrosion resistance, while the outer metal jacket allows heating or cooling for efficient heat transfer. The agitation system includes the agitator, reducer, motor, frame, and mechanical seal, which work together to promote material mixing. A temperature measurement system monitors the internal process temperature in real time, and the drive unit transfers motor power to the agitator for stable operation.

• Easy disassembly and efficient maintenance
  The vessel cover and vessel body are connected by clamps and sealing gaskets, allowing quick separation for internal inspection, agitator or seal replacement, and removal of adhered materials. This helps reduce downtime and lower maintenance costs.
• Independent maintenance of components
  The vessel cover and nozzles, such as the feed port and temperature measuring port, can be removed and serviced separately without dismantling the entire equipment, which reduces maintenance difficulty and workload.
• Flexible agitator configuration
  The reactor can be fitted with different agitator types, including anchor agitators, impeller agitators, and paddle agitators. These can be selected according to material viscosity and process requirements, making the reactor suitable for hydrolysis, neutralization, crystallization, and emulsification duties.
