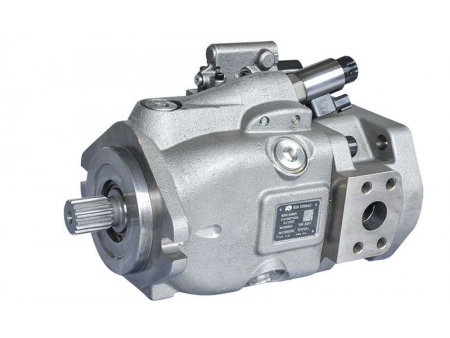

K10VO (Replacement for A10VO) Replacement hydraulic pump for A10VO axial piston variable pump Manufacturer

K10VO (Replacement for A10VO) Replacement hydraulic pump for A10VO axial piston variable pump

Request a Quote

View All: http://hydraulicpump-motor.com/1-1-1-3-axial-piston-variable-pump-open-circuit.html

For machines with medium pressure requirements
Size 10-100
Nominal pressure 250 bar
Maximum pressure 315 bar
Open circuit

Features

Variable axial piston pump with swashplate, designed for hydrostatic drive in an open circuit;
Flow proportional to the drive speed and displacement;
Steplessly change the flow by adjusting the cradle of the swashplate;
Strong power/weight ratio, small size and compact structure;
Low-noise;
Excellent oil suction characteristics;
Long service life;
Various control modes and short response time;
Through drive structure

Technical Parameters

Size				10	18	28	45(H)	63	71(H)	72	85	100(H)	140(H)
Displacement,geometric,per revolution		q_v.max	mL/r	10.5	18	28	45	63	71/71.1	72	85	100	140
Rotating speed (ps,abs=1bar)	q_v.max	n_max	rpm	3600	3300	3000	2600 (3000)	2600	2200/2550 (2550)	2600	2500	2000(2300) 2300(2300)	1800/2200 (2050)
Rotating speed (ps,abs=1bar)	qv	n_max,all	rpm	4320	3900/ 3960	3600	3100/3120 (3300)	3140	2600/Δ(2800)	3140	3000	2400/Δ\ 2500(2500)	2100/Δ(2200)
Max. flow	n_max	Q_v,max	L/min	37	59	84	117(135)	163	156/181 (178)	187	212	200/230 \230(230)	252/308 (287)
Max. flow	n_E	Q_VE	L/min	15	27	42	68	95	107	108	128	150	210
Max. power(Δ_pN)	n_max	P_max	kW	16	30\25	39\35	55/49(63)	68	73/85(83)	77	89	93/107\96 (107)	118/144 (134)
Max. power(Δ_pN)	n_E	P_E	kW	7	12.6\11	20\18	32\28	39	50	45	53	70\62	98
Torque(q_v,max )	Δ_pN	T_max	Nm	42	80\71	125\111	200\179	250	316/317	321	338	445/446\398	623/624
Torque(q_v,max )	Δ_pE	T	Nm	17	30\29	45	72	100	113	114	135	159	223
Max. input torque	S	T_E,max	Nm	126	124	193	319	630	626	630	1157	1104\1157	1620
	R	T_E,max	Nm	-	160	250	400	650	644	650	1215	-\1215	-
	U	T_E,max	Nm	60	59	105	188	306	300	306	628	595\628	Δ
	W	T_E,max	Nm	-	-	140	220	396	394	383	650	636\650	Δ/1220
	P	T_E,max	Nm	90	-\188	-\137	-\200	-	-	-	-	-\857	-
Max. through drive torque	S	T_D,max	Nm	-	108	160	319	484	492	484	698	778\698	1266
	R	T_D,max	Nm	-	120	176	365	484	548	484	698	-\Δ	-
	U	T_D,max	Nm	-	59	105	188	306	Δ/300	306	628	595\628	-\Δ
	W	T_D,max	Nm	-	-	140	220	396	Δ	383	650	636\650	-/1220
Rotary stiffness of drive shaft	S	C	kNm/rad	9200	11087	22317	37500	6550	71884	65500	143000	121142\ 143000	169537
	R	C	kNm/rad	-	14850	26360	41025	69400	76545	69400	152900	-\152900	-
	U	C	kNm/rad	6800	8090	16695	30077	49200	52779	49200	102900	101847\ 117900	Δ
	W	C	kNm/rad	-	-	19898	34463	54000	57460	5400	117900	72	165594
	P	C	kNm/rad	10700	-\13100	-\Δ	-\Δ	66	76	95	125	72	-
Moment of inertia		J	kgm²	0.0006	0.00093	0.0017	0.0033	0.0056	0.0083/ 0.0087	0.0056	0.012	0.0167	0.0242
Max. angular acceleration		α	rad/s²	8000	6800	5500	4000	3300	3300/2900	3300	2700	2700/2400\Δ	2700/2000
Case volume		V	L	0.2	0.4\0.25	0.7\0.3	1.0\0.5	0.8	1.6	0.8	1	2.2/Δ	3.0
Weight (approx.)	without through drive	m	kg	8	12\11.5	15	21\18	22	33/36.5	22	36	45/55\Δ	60/70
	with through drive	m	kg	-	Δ\13	Δ\18	Δ\24	28	Δ/47	28	45	Δ/69\Δ	Δ/73

Description

K10VO is an axial piston variable pump with axial piston rotary group in swashplate design for hydrostatic drive in an open circuit. The flow is proportional to drive speed and displacement and can be changed steplessly by controlling the cradle. The pistons are arranged axially to the drive shaft for variable displacement axial piston pump units with swashplate design. In an open circuit, the hydraulic fluid flows from the reservoir to the hydraulic pump, where it is fed to the hydraulic motor. From the consumer, the hydraulic fluid flows directly back to the reservoir.

Applications

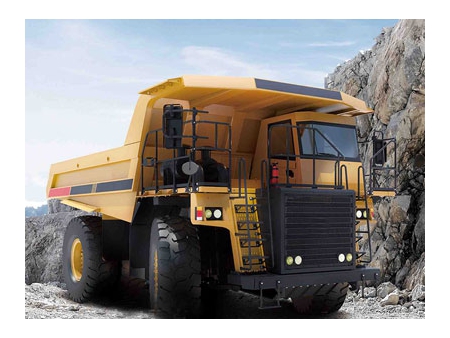

Dump Mining Truck

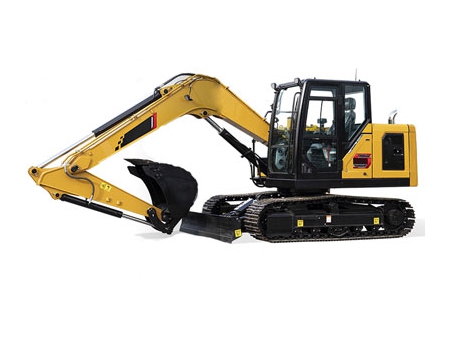

Excavator

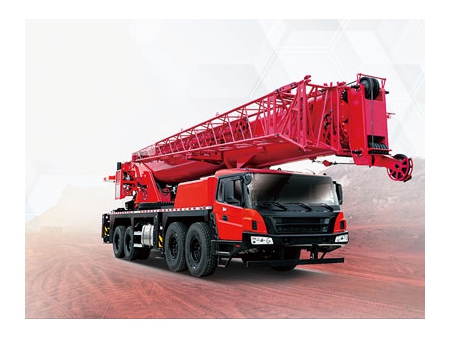

Crane
