KDPV (Replacement for PV series) Replacement hydraulic pump for PV series axial piston variable pump
Request a Quote
- Series of swash plate axial piston pump
- Size 16-270ml/r
- Nominal pressure up to 350 bar
- Maximum pressure up to 400 bar
- Open circuit
Features
- Increased productivity
- Fast response times
- Full power thru-shaft capability
- Design flexibility
- Durable cast iron housing
- Metric, pilot and shaft ports available
- Wide range of controls
- Ease of use
- Replaceable bronze port plate and piston slipper plate
- Optional inlet/outlet locations for easy installation
- Decreased operational noise
Technical Parameters
Size | | | | | | | | | | | | | | |
Pump specifications | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | |
Max. displacement | cm3/rev | 16 | 20 | 23 | 28 | 32 | 40 | 46 | 63 | 80 | 92 | 140 | 180 | 270 |
Output flow at 1500 r/min | l/min | 24 | 30 | 34.5 | 42 | 48 | 60 | 69 | 94.5 | 120 | 138 | 270 | 405 | 405 |
Nominal pressure PN | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Max. pressure Pmax at 20% working cycle | bar | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
Case drain pressure,continuous | bar | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Case drain pressure,peak value | bar | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Min. suction pressure | bar | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Max. suction pressure | bar | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Input power at 1500 r/min and 350 bar | kW | 15.5 | 19.5 | 22.5 | 27.5 | 31 | 39 | 45 | 61.5 | 78 | 89.5 | 136 | 175 | 263 |
Max. rotation speed,at suction pressure:1 bar A/h | r/min | 3000 | 3000 | 3000 | 3000 | 2800 | 2800 | 2800 | 2800 | 2500 | 2300 | 2400 | 2200 | 1800 |
Moment of inertia | kgm2 | 0.0017 | 0.0017 | 0.0017 | 0.0017 | 0.0043 | 0.0043 | 0.0043 | 0.018 | 0.018 | 0.018 | 0.030 | 0.030 | 0.098 |
Weight | kg | 19 | 19 | 19 | 19 | 30 | 30 | 30 | 59 | 59 | 59 | 90 | 90 | 172 |
Description
KDPV series is a family axial piston variable pump. The pumps reduce downtime with fast and reliable variable volume pumps engineered explicitly for medium-pressure applications. KDPV axial piston pumps feature through drive capability and heavy-duty structure for ideal for production. Its low-noise technology for reduced noise levels and easy-to-service components significantly improve the working environment.
Applications

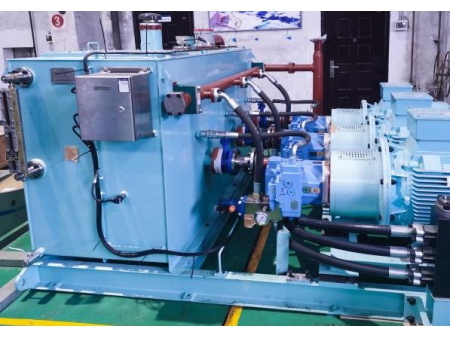

- Paste Filling (Mining)

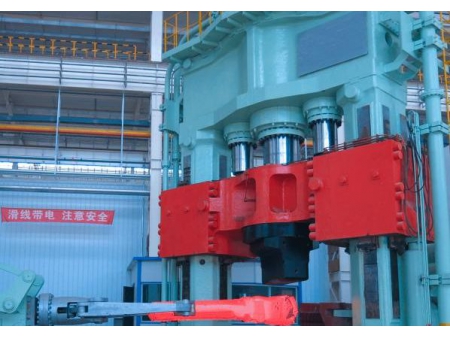

- Forging & Pressing
- Extruder
