K4FO Replacement hydraulic pump for A4FO axial piston fixed pump
Request a Quote
- All-purpose high pressure pump with through drive
- Size 22-500
- Nominal pressure up to 350 bar
- Maximum pressure up to 400 bar
- Open circuit
Features
- Axial piston fixed displacement pump with swashplate, designed for hydrostatic drives in open circuits
- For mobile and stationary applications
- Flow is proportional to drive speed and displacement
- High power/weight ratio
- High total efficiency
- Optimized size for particular installation
- Excellent suction characteristics
- Low noise level
- Long service life
- Through drive for mounting additional pumps
Technical Parameters
Size | | | | | | | | |||
Displacement | Vg | cm³ | 22 | 28 | 71 | 125 | 180 | 250 | 500 | |
Displacement,geometric,per revolution | ||||||||||
Max. rotating speed2) | nnom | rpm | 3600 | 3000 | 2200 | 1800 | 1800 | 1500/ 1900 | 1320/ 1500 | |
Max. rotating speed3) | nmax | rpm | 4500 | 3750 | 2700 | 2200 | 2100 | 1800/ 2100 | 1600/ 1800 | |
Flow | At Vg and nnom | qV | l/min | 79 | 84 | 156 | 225 | 324 | 375/475 | 660/750 |
Power | At Vg,nnom,and at Δp = 400 bar | P | kW | 53 | 56 | 914) | 1314) | 1894) | 219/2774) | 385/4384) |
Torque | At Vg and Δp = 400 bar | T | Nm | 140 | 178 | 3964) | 6964) | 10034) | 13934) | 27854) |
Rotary stiffness of through shaft | S | c | kNm/rad | 29.9 | 29.9 | = | - | - | - | - |
P | c | kNm/rad | - | - | 146 | 260 | 328 | 527 | 1145 | |
Z | c | kNm/rad | - | - | 146 | 263 | 332 | 543 | 1136 | |
Moment of inertia for rotary group | JGR | kgm2 | 0.0017 | 0.0017 | 0.0121 | 0.0300 | 0.055 | 0.0959 | 0.3325 | |
Max. angular acceleration | α | rad/s2 | 38000 | 38000 | 20000 | 13000 | 10000 | 8000 | 4800 | |
Case volume | V | I | 0.3 | 0.3 | 2.0 | 3.0 | 4.0 | 7.0 | 11.0 | |
Weight (approx.) | m | kg | 13.5 | 13.5 | 34 | 61 | 76 | 120 | 220 |
Description
K4FO fixed displacement piston pumps for hydrostatic drives in open circuits, as a replacement for A4FO, are axial piston rotary group pump with swashplate design.
Applications

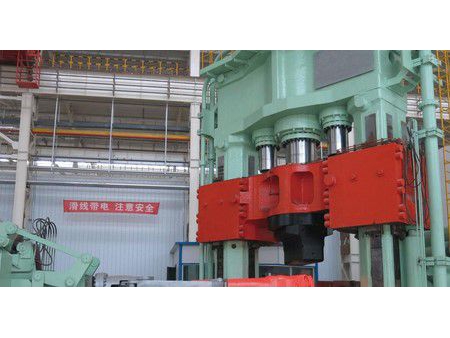

- Forging & Pressing

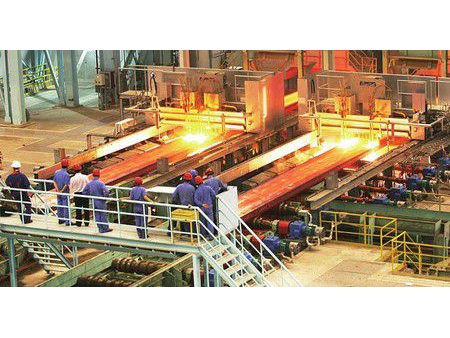

- Metallurgical
