Request a Quote

Suitable for making biodegradable plastic flat bags/T-shirt bags/vest shopping bags

TPLAST offers three varieties of 4, 6 or 8 lines automatic plastic bag making machines, which are perfect for manufacturing biodegradable and plastic vest bags and flat-opening bags. These plastic bags are the preferred choice of many supermarkets.

Taiwan frequency brake motor is utilized as the primary motor to save energy as well as regulate speed with greater ease. The unwinder adopts Taiwan design, and offers the same speed as the main machine, while all its electric parts are from world's renowned brands with extended lifespans. Not only is it automated, it also saves workers and protects the environment.

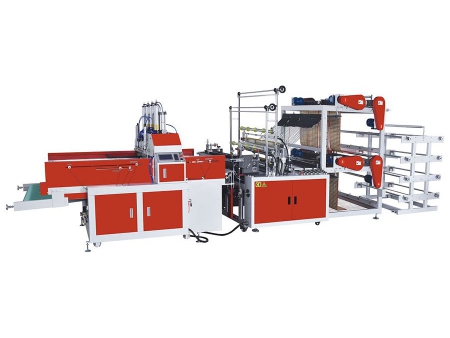

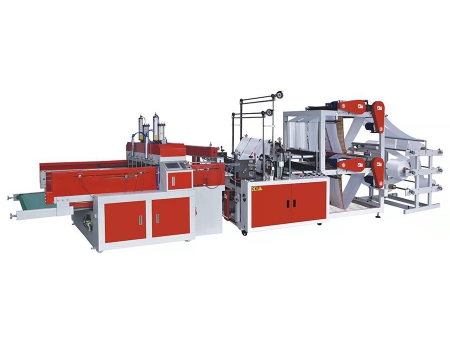

Automatic 8 Lines Plastic Bag Making Machine
Video

Technical Parameters

Model
RG-DL1000B
RG-DL1200B
Sealing and cutting width (mm) 950*2, 200*8 1150*2 250*8
Sealing and cutting length (mm) 1500 1500
Bag making speed (pcs/min) 240-960 240-960
Power of motor (kW) 1.5 1.5
Weight (kg) 2500 2800
Dimension (m) 5.5×1.5×1.7 5.5*1.7*1.7

Applications
This automatic 8 lines plastic bag making machine is suited to make plastic shopping bags, carrier bags and grocery bags for supermarkets, shopping malls, retail stores, convenience stores, and more.

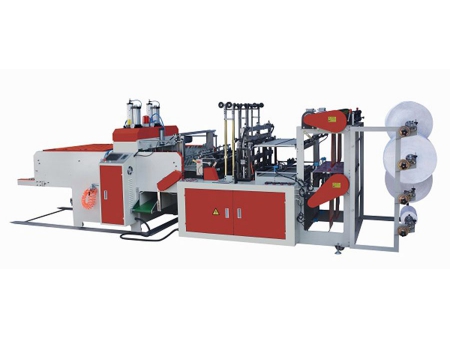

Automatic 6 Lines Plastic Bag Making Machine (Taiwan Design)
Video

Technical Parameters

Model
RG-DL1000B
RG-DL1200B
Sealing and cutting width (mm) 950*2, 300*6 1150*2 350*6
Sealing and cutting length (mm) 1200 1200
Bag making speed (pcs/min) 240-720 240-720
Power of motor (kW) 1.5 1.5
Weight (kg) 2500 2800
Dimension (m) 5.5×1.5×1.7 5.5*1.7*1.7

Applications
This automatic 6 lines plastic bag making machine is suited to make plastic shopping bags, carrier bags and grocery bags for supermarkets, shopping malls, retail stores, convenience stores, and more.

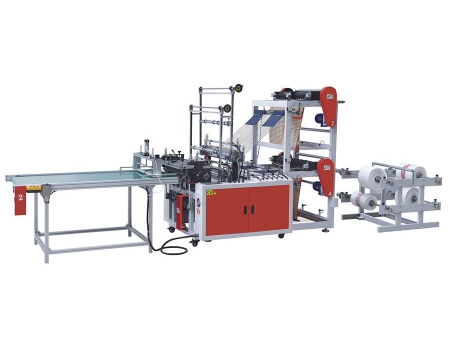

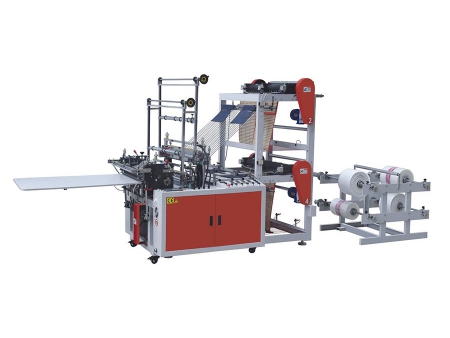

Automatic 4 Lines Plastic Bag Making Machine

Technical Parameters

Model
RG-DL800B
RG-DL1000B
Sealing and cutting width (mm) 750*2, 300*4 950*2 400*4
Sealing and cutting length (mm) 1200 1200
Bag making speed (pcs/min) 240-480 240-480
Power of motor (kW) 1.5 1.5
Weight (kg) 2500 2800
Dimension (m) 5.5×1.5×1.7 5.5*1.7*1.7

Applications
This automatic 4 lines plastic bag making machine is suited to make plastic shopping bags, carrier bags and grocery bags for supermarkets, shopping malls, retail stores, convenience stores, and more.


Details

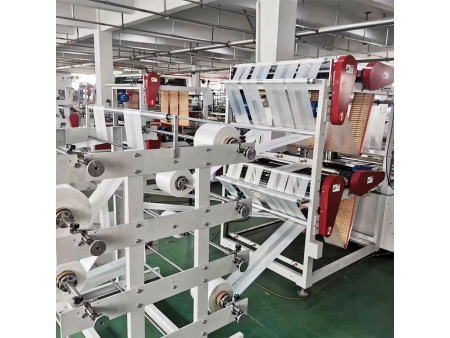

  • Unwinder 370 W, A/C motor, inverter control
  • Photosensor High quality photosensor for precisely controlling the unwinding film rolls

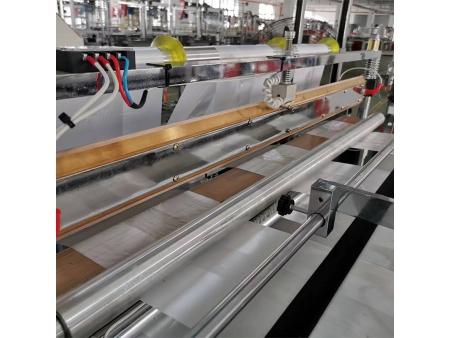

  • Sealing Unit High strength casting copper sealing knife
  • Air Cooling System Controlled by Taiwan AirTAC electric valve
    Air cooling method secures an increased sealing strength, without stretching

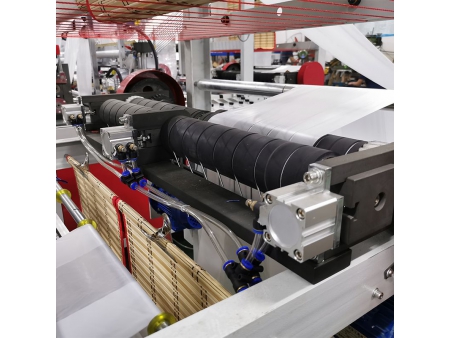

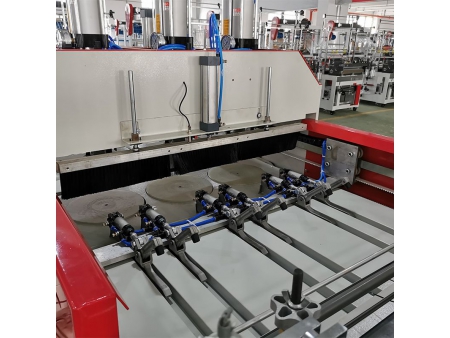

  • Cutting Unit With the use of a spring-based cutting design, the cutting unit is made easier for user to operate
    The longevity of the cutting knife is increased thanks to the use of SK-II alloy steel
  • Components Taiwan FOTEK solid state relay, Omron temperature controller, Schneider electric components, and Panasonic photocell - all of these ensure that our plastic bag making machine will be of the highest quality and capable of long-term performance

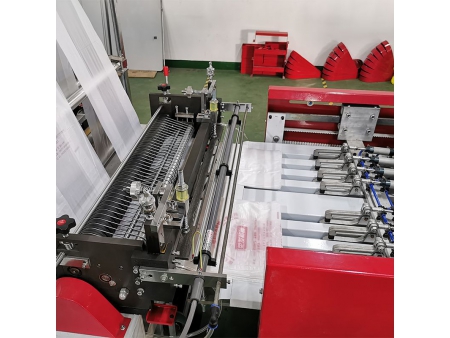

  • Punching Unit It allows for automated operations, leading to increased efficiency and a substantially reduced need for manual labor
