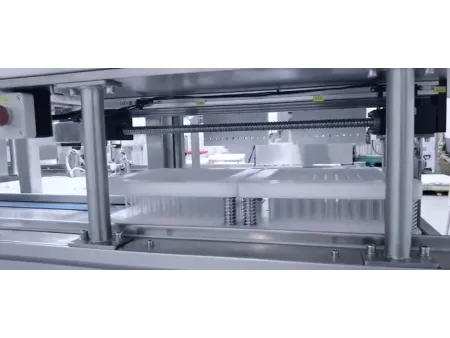

Automatic Vacuum Blood Collection Tube Assembly Line

Automatic Vacuum Blood Collection Tube Assembly Line
Request a Quote
12,000-15,000 pcs/h

Automatic production line for assembling vacuum & non-vacuum blood collection tubes

  • Production capacity 12,000-15,000 pcs/h
  • Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable
    (available in PET, PP, glass)
  • Cap size As per client's samples
Finished Product Samples

This fully automatic blood collection tube assembly machine is designed for the production of both vacuum and non-vacuum medical disposable tubes. By adjusting the vacuum setting to zero, the assembly system can efficiently switch to non-vacuum tube production. It’s compatible with tubes made from PET, PP, or glass, ensuring versatility and precision in the assembly process.

Work Flow
  • Tube loading
  • Inversion detection
  • Additive dosing (K2 EDTA/K3 EDTA, heparin, clot activator, sodium citrate)
  • Capping
  • Vacuuming

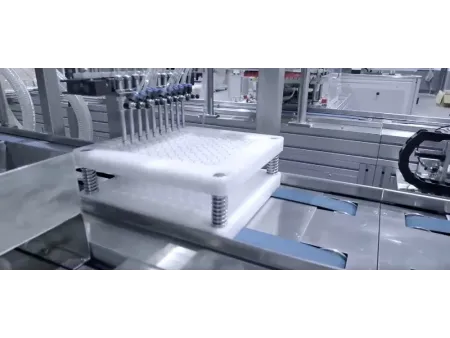

  • Foam tray loading
  • Heat shrink packaging
  • Completion
Technical Specifications
Model HY100AB (standard)
Production capacity 12,000-15,000 pcs/h
Tube size Ø13×75mm,Ø13×100mm,Ø16×100mm,customizable (available in PET,PP,glass)
Cap size As per client's samples
Control system PLC control with touch screen
Additive dosing system K2/K3 EDTA:10 sets of precision ceramic pump
Blood clot activator (BCA):10 sets of precision ceramic pump
Sodium citrate:5 sets of precision ceramic pump
Additive drying system 3 PTC dust-free drying machines
Detection system Inverted tube detection before additive dosing
Alarm for shortage of foam trays
Vacuum degree Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan)
Air consumption Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power 20kW/AC380V
We provide efficient assembly solutions tailored to your medical device needsYour Reliable Partner for Blood Collection Tube Assembly Solutions
