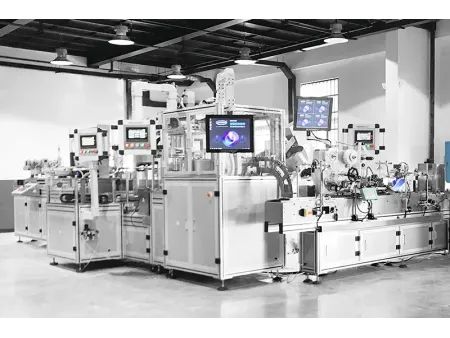

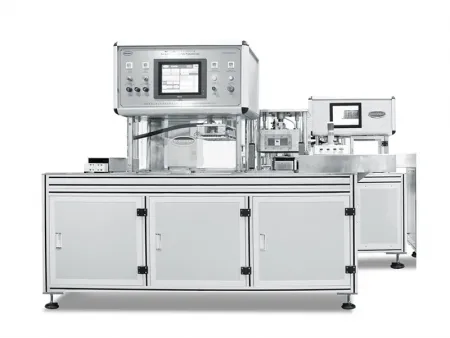

Automatic Vacuum Blood Collection Tube Assembly Line

Request a Quote

View All: http://medical-machinery.com/1-1-3-automatic-vacuum-blood-collection-tube-assembly-line.html

12,000-15,000 pcs/h (with Post-Labeling)

with post-labeling, suitable for CCD camera detection

Production capacity 12,000-15,000 pcs/h
Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable
(available in PET, PP, glass)
Cap size As per client’s samples

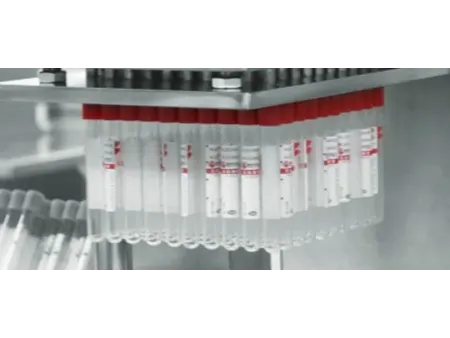

Finished Product Samples

This fully automated production line for vacuum disposable blood collection tubes is designed with post-labeling function. Compared to pre-labeling machines, the benefits for this blood collection tube assembly line is that it can add cameras for detection, like CCD for label checking and chemical checking etc., thus effectively reducing the work intensity of quality checking person while ensuring the quality of the final product.

Work Flow

Tube loading

Inversion detection

Additive dosing (K2 EDTA/K3 EDTA, heparin, clot activator, sodium citrate)

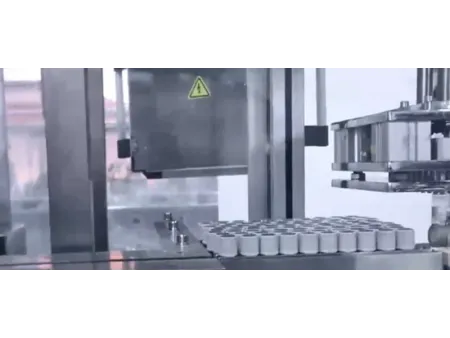

Capping

Vacuuming

Labeling (tubes without labels are automatically rejected)

Foam tray loading

Heat shrink packaging

Completion

Technical Specifications

Model	H100 Post-Labeling
Production capacity	12,000-15,000 pcs/h
Tube size	Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable (available in PET, PP, glass)
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	K2/K3 EDTA: 10 sets of precision ceramic pump
	Blood clot activator (BCA): 10 sets of precision ceramic pump
	Sodium citrate: 5 sets of precision ceramic pump
Additive drying system	4 PTC dust-free drying machines
Detection system	Rejection of unlabeled tubes
	Inverted tube detection before additive dosing
	Alarm for shortage of foam trays
Vacuum degree	Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan)
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	25kW/AC380V
