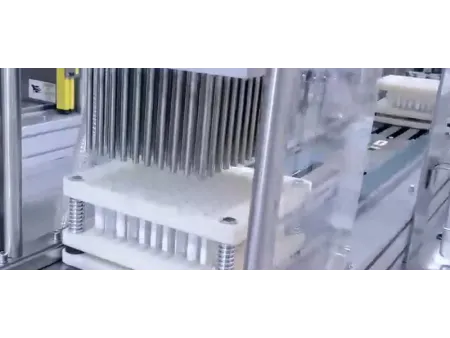

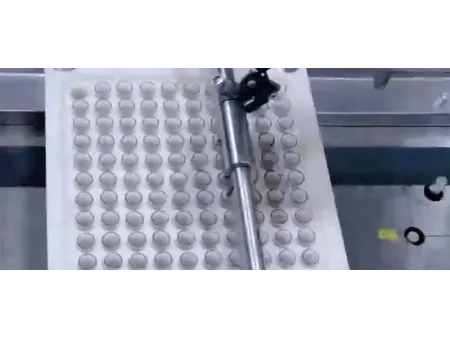

Automatic Vacuum Blood Collection Tube Assembly Line
Request a Quote
View All: http://medical-machinery.com/1-1-2-automatic-vacuum-blood-collection-tube-assembly-line.html
12,000-15,000 pcs/h (with Tube Sorting)
with tube sorting for dis-ordered tubes from the injection molding machine
- Production capacity 12,000-15,000 pcs/h
- Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm or customizable
(available in PET, PP, glass) - Cap size As per client's samples
Finished Product Samples
This fully automatic blood collection tube making machine not only conducts the assembly process for medical disposable vacuum blood collection tube, but also accomplishes tube sorting for dis-ordered tubes from the injection molding machine.
It is well suited for those large-scale factories who manufactures PET or PP test tubes.
Work Flow
- Tube sorting
- Labeling (tubes without labels are automatically rejected)
- Tube loading
- Inversion detection
- Additive dosing (K2 EDTA/K3 EDTA, heparin, clot activator, sodium citrate)
- Capping
- Vacuuming
- Foam tray loading
- Heat shrink packaging
- Completion
Technical Specifications
| Model | H100 Tube Sorting |
| Production capacity | 12,000-15,000 pcs/h |
| Tube size | Ø13×75mm, Ø13×100mm, Ø16×100mm or customizable (available in PET, PP, glass) |
| Cap size | As per client's samples |
| Control system | PLC control with touch screen |
| Additive dosing system | K2/K3 EDTA: 10 sets of precision ceramic pump |
| Blood clot activator (BCA): 10 sets of precision ceramic pump | |
| Sodium citrate: 5 sets of precision ceramic pump | |
| Additive drying system | 4 PTC dust-free drying machines |
| Detection system | Rejection of unlabeled tubes |
| Inverted tube detection before additive dosing | |
| Alarm for shortage of foam trays | |
| Vacuum degree | Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan) |
| Air consumption | Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa |
| Power | 30kW/AC380V |
About HONGREAT
Your Reliable Partner for Blood Collection Tube Assembly Solutions
- 220Partner of over 220 companies globally
- 40Exporting to more than 40 countries worldwide
- 20Over 20 years of experience in manufacturing blood collection tube assembly equipment
- 1010 years dedicated to after-sales service
- 19Holder of 19 patents in blood collection tube machine technology
