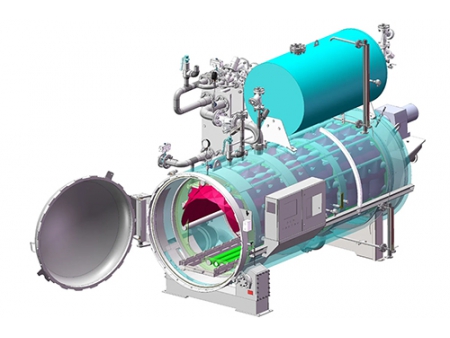

Water Spray Retort with Preheat Tank

Request a Quote

View All: http://retort-sterilizer.com/1-1-1-water-spray-retort-with-preheat-tank.html

If the product a customer is filling requires a temperature of at least 60 degrees, they should consider using a sterilization retort with a preheat tank. This will ensure the product is heated to the desired temperature.

The preheat tank is designed to heat sterilization water before it is fed into the upper tank. This ensures high efficiency and energy saving in the sterilization process and guarantees a successful outcome.

The water spray retort with a preheat tank offers three different spraying options: top two sides spray, top spray and side spray. Of these, top two sides spraying has been widely used in the past and is much more effective in terms of sterilization. It has also received higher customer acceptance than the other two types.

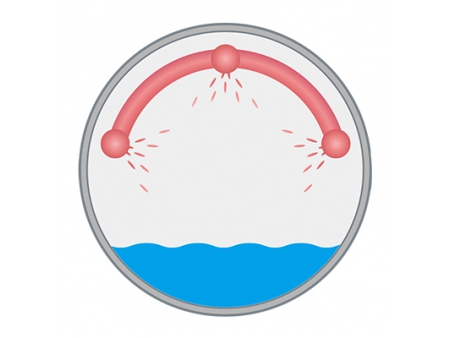

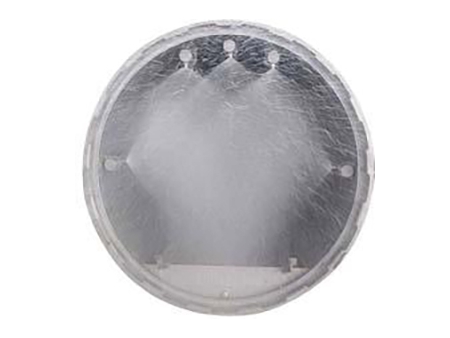

Top Two Sides Spray

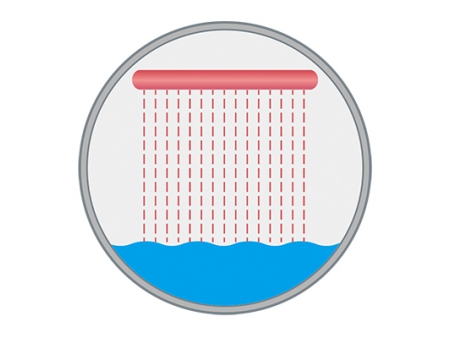

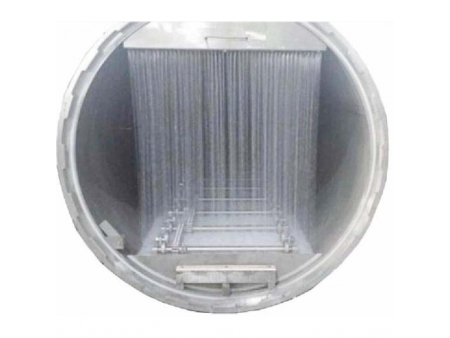

Top Spray

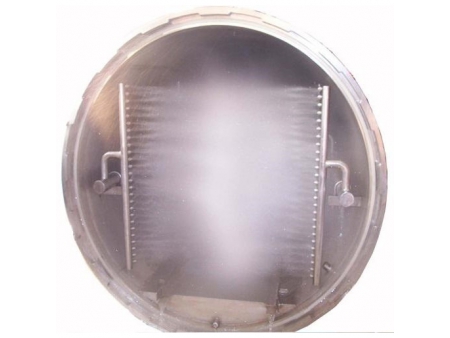

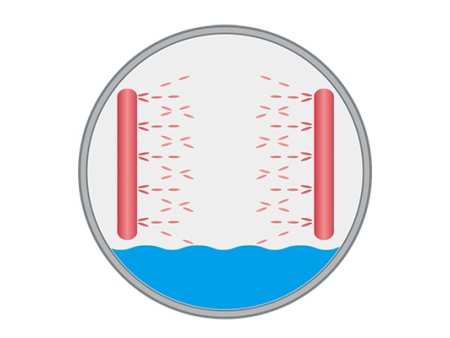

Side Spray

Specifications

Model	Dimension (mm)			Retort wall thickness (mm)	Max. working pressure (Mpa)	Max. working temperature (℃)	Approx. retort weight (kg)	Approx. operating weight (kg)		Power (kW)		Voltage (V)
	Dimension (mm)								Capacity (m³)	Power (kW)
	L	W	H						Capacity (m³)	Top spray (water cascading)	Side spray / combined top and side spray
PLJ09-2	3080	1400	1400	4	0.3	130	1020	1500	1.33	3	4	380
PLJ10-1	2300	1500	1650	4	0.3	130	1000	1300	0.95	1.5	2.2	380
PLJ10-2	3100	1470	1650	4	0.3	130	1300	1800	1.65	3	5.5	380
PLJ12-2	3400	1700	1850	5	0.3	130	1380	2100	2.43	4	7.5	380
PLJ12-3	4300	1700	1850	5	0.3	130	1630	2750	3.46	4	7.5	380
PLJ12-4	5200	1700	1850	5	0.3	130	1860	3300	4.46	5.5	7.5	380
PLJ13-4	4600	1800	2100	6	0.3	130	2300	4000	5.81	7.5	11	380
PLJ14-4	5500	1900	2200	6	0.3	130	2500	4460	6.77	7.5	11	380
PLJ15-4	5800	2000	2400	6	0.3	130	2900	5900	7.82	11	15	380
PLJ15-5	6850	2000	2400	6	0.3	130	3250	6000	9.59	11	15	380
PLJ15-6	7700	2000	2400	6	0.3	130	3500	6700	11.35	11	15	380

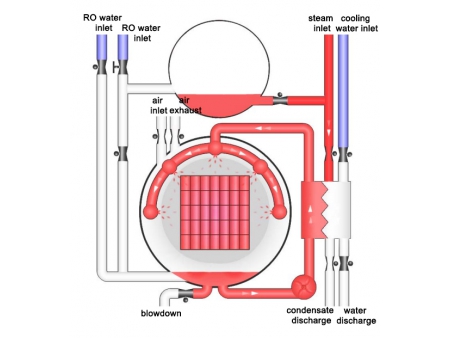

Working Principle

Injecting and Preheating Sterilized Water: A specified quantity of sterilization water is injected into the preheater. The preheater prepares the water for the sterilization process by bringing it to the desired temperature before entering the main system.
Sterilization: The sterilization process begins with the injection of sterilization water from a preheat tank. A circulating pump continuously moves this water through a closed system. As the water circulates, it vaporizes into steam and is sprayed onto the surface of the product. Steam is introduced to the heat exchanger, raising the temperature. The temperature is regulated to a predetermined amount, and the pressure in the retort is controlled within the desired range.
Cooling and Recirculation: First, the steam entering the heat exchanger is stopped. Cooling water is then introduced into the exchanger to lower the temperature of the circulating water to around 80℃. The sterilizing water from the sterilization retort is recycled back to the preheating tank. The sterilization process is repeated by circulating the sterilizing water through the closed system using a circulating pump. The temperature is gradually reduced to a set level, ensuring that the products are cooled and safe to handle.
Blowdown and Drainage: The steam pressure in the vessel is released through the exhaust valve. After the pressure is released, the remaining sterilization water is allowed to flow out through the drain valve.

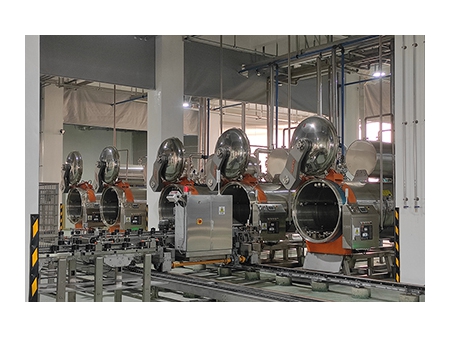

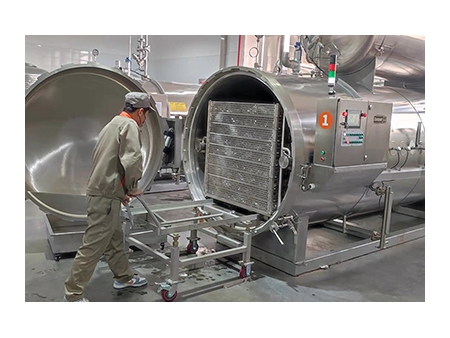

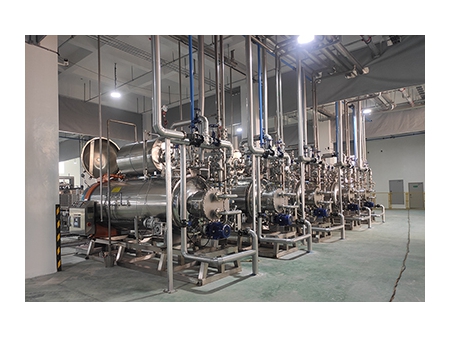

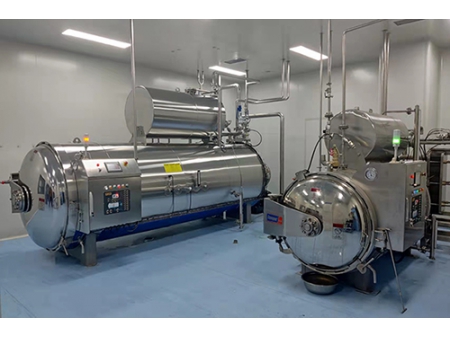

Water spray retort operated at our customer site

FAQ

This food sterilizer comes with a pre-set hot water system, enhancing food sterilization efficiency. After food processing, the hot water is recycled for pre-heating, making it a high-performance and energy-efficient sterilization equipment.

The retort sterilization equipment provides three distinct sterilization methods to cater to various retort food processing needs:

Top spray retort
Top two sides spray retort
Side spray retort

This food retort is primarily utilized by fruit processing plants, vegetable processing plants, beverage filling companies, seafood processing companies, and baby food manufacturers. It can be seamlessly integrated into various food processing lines.

This versatile food retort is designed for meat sterilization, vegetables sterilization, soup sterilizing, beverages sterilization, and baby food sterilization, making it a multi-purpose food sterilization equipment.

Clients from countries like Malaysia, Mexico, Colombia, Ecuador, the Philippines, South Korea, Germany, and many others have chosen this food processing equipment and have highly appreciated its reliable performance.

Yes, apart from our existing food retorts, we also offer new product development and experimental design services based on customer requirements, catering to diverse needs in retort processing in food technology.
